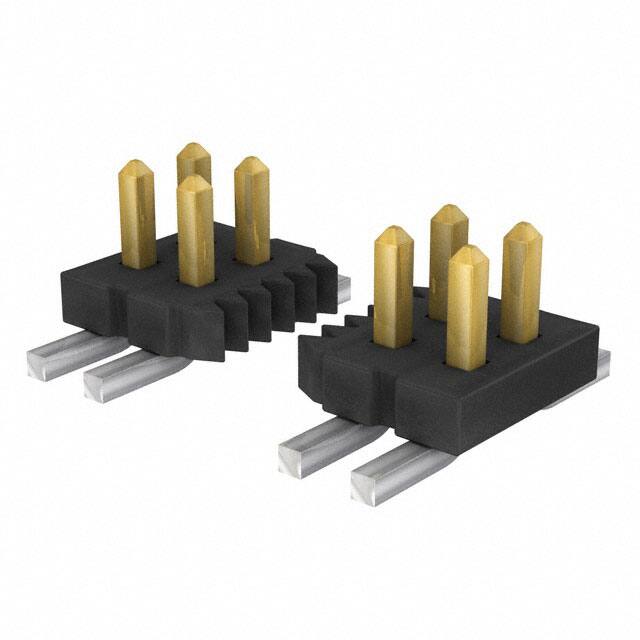

FTS-110-03-L-DV

Specifications

Number Of Positions Loaded

All

Montaj

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Surface Mount

Ambalaj

Bulk

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

2

Pozisyon Sayısı

20

Mixed Contacts

NO

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

FTS

Reference Standard

UL

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Body Breadth

0.135 inch

Insulation Height

0.034 0.86mm

Pcb Contact Row Spacing

3.7338 mm

Fastening Type

Push-Pull

Orientation

Straight

JESD-609 Kodu

e3

Iec Conformance

NO

ECCN Kodu

EAR99

Number Of Conductors

ONE

Connector Type

Header, Cuttable

Total Number Of Contacts

20

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Mating Contact Pitch

0.05 inch

Additional Feature

LOW PROFILE

HTS Kodu

8536.69.40.40

Din Conformance

NO

Shrouding

Unshrouded

Terminal

Solder

Contact Materials

Phosphor Bronze
