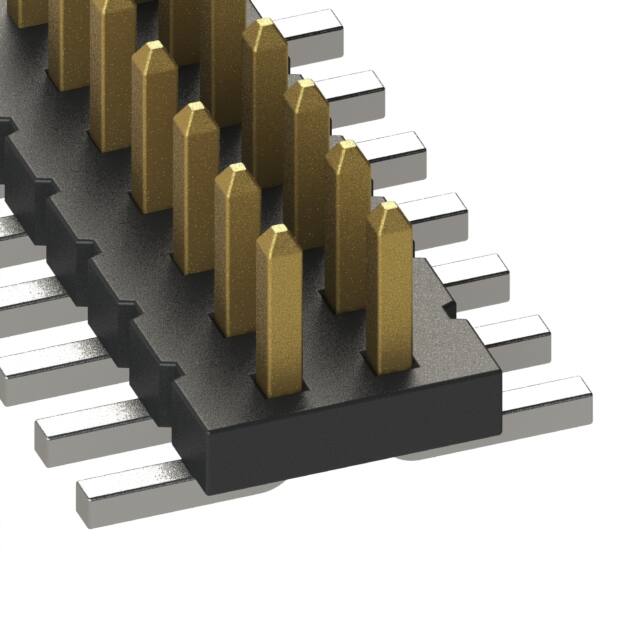

FTS-110-02-L-DV

Specifications

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

ECCN Kodu

EAR99

Total Number Of Contacts

20

Connector Type

Header, Cuttable

Fastening Type

Push-Pull

Pcb Contact Row Spacing

3.7338 mm

Orientation

Straight

Iec Conformance

NO

JESD-609 Kodu

e3

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Body Breadth

0.135 inch

Insulation Height

0.034 0.86mm

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Reach Svhc

No SVHC

Number Of Pcb Rows

2

Ambalaj

Tube

Montaj Tipi

Surface Mount

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Reference Standard

UL

Mixed Contacts

NO

Parça Durumu

Active

Seri

FTS

Sıra Sayısı

2

Pozisyon Sayısı

20

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Plating Thickness

10μin

Yayın Yılı

2012

Contact Finish Mating

Gold

Contact Type

Male Pin

Contact Finish Post

Tin

Row Spacing Mating

0.050 (1.27mm)

Uzunluk

12.7mm
