Volume pricing
- 1+ pcs$1.04
- 10+ pcs$0.98
- 100+ pcs$0.93
- 500+ pcs$0.87
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

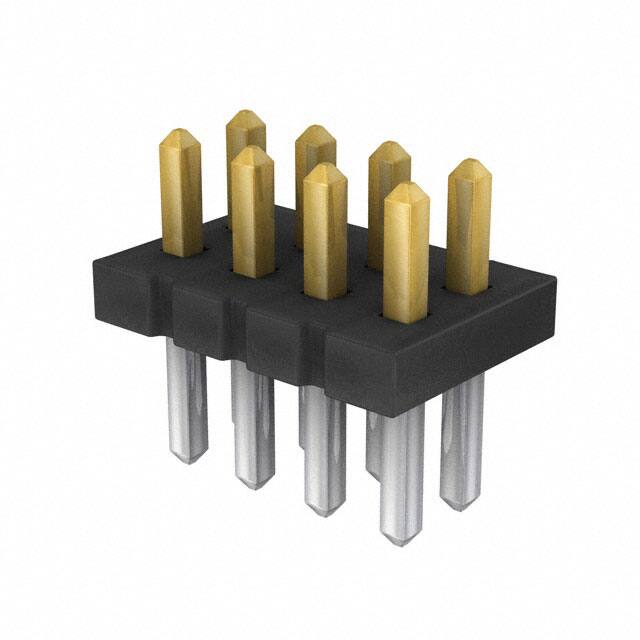

Specifications
- Housing Material
- Polymer
- Gender
- Male
- Yayın Yılı
- 1998
- Contact Length Post
- 0.090 2.29mm
- Contact Shape
- Square
- Uzunluk
- 5.08mm
- Row Spacing Mating
- 0.050 (1.27mm)
- Contact Finish Post
- Tin
- Contact Type
- Male Pin
- Contact Finish Mating
- Gold
- Kurşunsuz Kodu
- yes
- Housing Color
- Black
- Style
- Board to Board or Cable
- Current Rating Amps
- 3.4A per Contact
- Contact Lengthmating
- 0.065 1.65mm
- Option
- GENERAL PURPOSE
- RoHS Durumu
- ROHS3 Compliant
- Depth
- 3.42mm
- Terminal
- Solder
- Genişlik
- 3.42mm
- Contact Materials
- Phosphor Bronze
- Additional Feature
- LOW PROFILE
- Shrouding
- Unshrouded
- Din Conformance
- NO
- Connector Type
- Header, Cuttable
- ECCN Kodu
- EAR99
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mil Conformance
- NO
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Çalışma Sıcaklığı
- -55°C~125°C
- Filter Feature
- NO
- Insulation Height
- 0.034 0.86mm
- Pitch Mating
- 0.050 1.27mm
- Iec Conformance
- NO
- Orientation
- Straight
- Fastening Type
- Push-Pull
- Seri
- FTS
- Parça Durumu
- Active
- Overall Contact Length
- 0.189 4.80mm
- Kurşunsuz
- Lead Free
