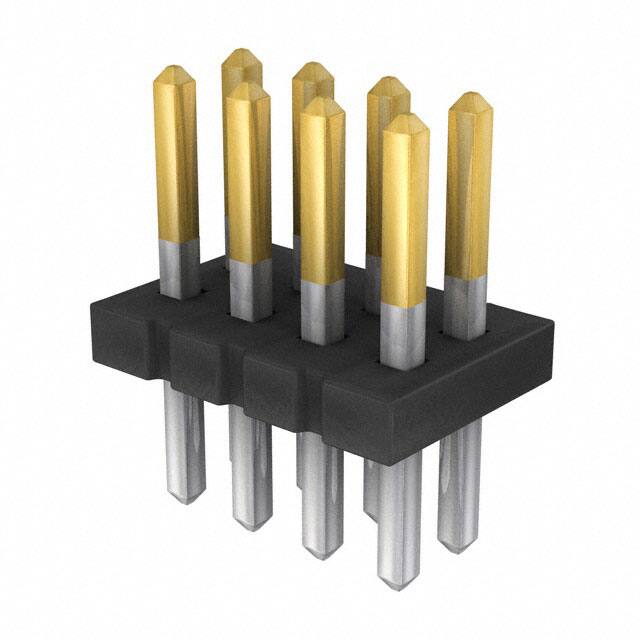

FTS-104-01-L-D

Specifications

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

1 Weeks

Mating Contact Pitch

0.05 inch

Pitch Mating

0.050 1.27mm

Insulation Height

0.034 0.86mm

Body Breadth

0.135 inch

Filter Feature

NO

Iec Conformance

NO

JESD-609 Kodu

e3

Fastening Type

Push-Pull

Orientation

Straight

Connector Type

Header, Cuttable

ECCN Kodu

EAR99

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

8

Sıra Sayısı

2

Parça Durumu

Active

Overall Contact Length

0.244 6.20mm

Seri

FTS

Mixed Contacts

NO

Kurşunsuz

Lead Free

Reference Standard

UL

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj

Through Hole

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Ambalaj

Bulk

Number Of Pcb Rows

2

Gender

Male

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Contact Shape

Square

Row Spacing Mating

0.050 (1.27mm)

Uzunluk

5.08mm
