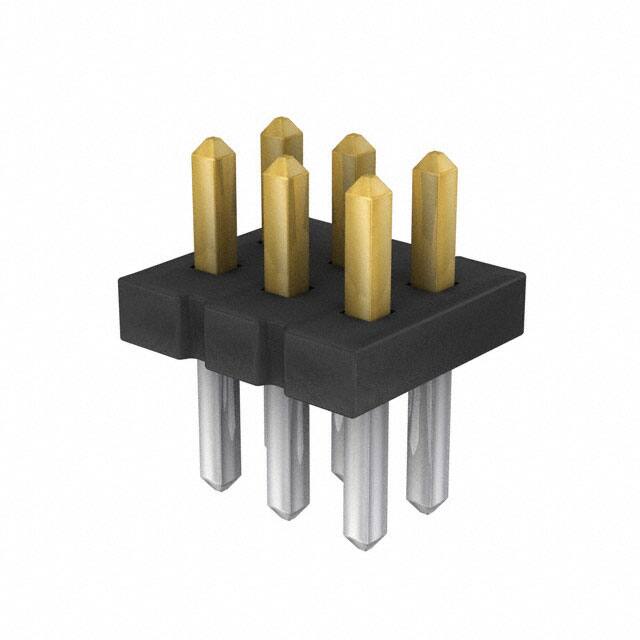

FTS-103-03-L-D

Specifications

Mixed Contacts

NO

Kurşunsuz

Lead Free

Overall Contact Length

0.189 4.80mm

Parça Durumu

Active

Seri

FTS

Sıra Sayısı

2

Pozisyon Sayısı

6

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Ambalaj

Bulk

Montaj Tipi

Through Hole

Montaj

Through Hole

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Fabrika Tedarik Süresi

1 Weeks

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header, Cuttable

Fastening Type

Push-Pull

Orientation

Straight

Iec Conformance

NO

Pitch Mating

0.050 1.27mm

Insulation Height

0.034 0.86mm

Filter Feature

NO

Contact Lengthmating

0.065 1.65mm

Current Rating Amps

3.4A per Contact

Style

Board to Board or Cable

Housing Color

Black

Kurşunsuz Kodu

yes

Depth

3.42mm

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Contact Materials

Phosphor Bronze

Genişlik

3.42mm

Terminal

Solder

Din Conformance

NO

Shrouding

Unshrouded
