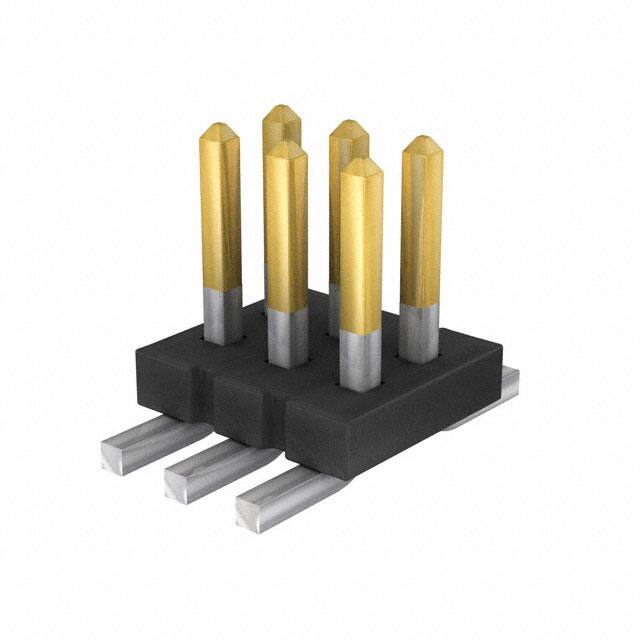

FTS-103-01-L-DV-TR

Specifications

Housing Material

Polymer

Gender

Male

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Yayın Yılı

2010

Connector Type

Header, Cuttable

Total Number Of Contacts

6

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Mil Conformance

NO

Contact Shape

Square

Row Spacing Mating

0.050 (1.27mm)

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Insulation Height

0.034 0.86mm

Uzunluk

3.81mm

Iec Conformance

NO

Contact Finish Post

Tin

JESD-609 Kodu

e3

Contact Type

Male Pin

Fastening Type

Push-Pull

Orientation

Straight

Contact Finish Mating

Gold

Parça Durumu

Active

Seri

FTS

Contact Lengthmating

0.120 3.05mm

Current Rating Amps

3.4A per Contact

Mixed Contacts

NO

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

6

Depth

3.42mm

Sıra Sayısı

2

Insulation Color

Black

Terminal

Solder
