Volume pricing
- 1+ pcs$2.71
- 10+ pcs$2.56
- 100+ pcs$2.41
- 500+ pcs$2.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

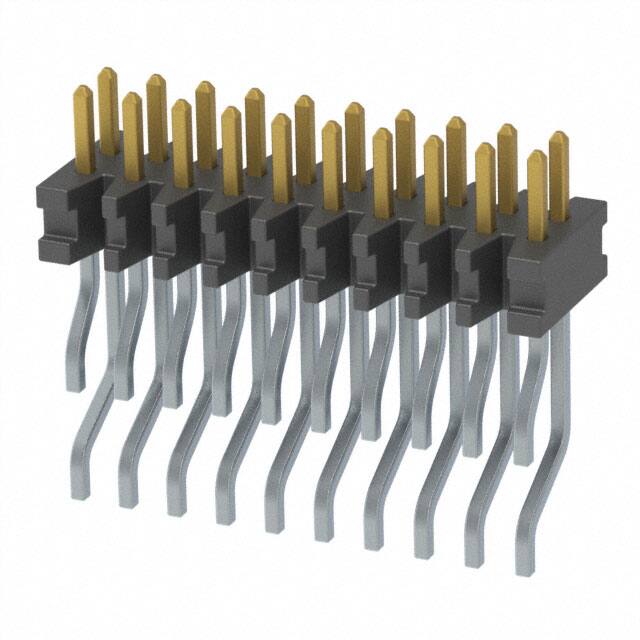

Specifications
- Row Spacing Mating
- 0.039 (1.00mm)
- Ul Flammability Code
- 94V-0
- Din Conformance
- NO
- Material Flammability Rating
- UL94 V-0
- Contact Lengthmating
- 0.065 1.65mm
- Number Of Positions Loaded
- All
- Çalışma Sıcaklığı
- -55°C~125°C
- Gender
- Male
- Contact Finish Mating
- Gold
- Fastening Type
- Push-Pull
- Insulation Height
- 0.125 3.18mm
- Filter Feature
- NO
- Option
- GENERAL PURPOSE
- Connector Type
- Header
- Montaj Tipi
- Surface Mount, Right Angle
- Contact Finish Post
- Tin
- Parça Durumu
- Active
- Total Number Of Contacts
- 20
- Current Rating Amps
- 2.8A per Contact
- Contact Type
- Male Pin
- Terminal
- Solder
- Style
- Board to Board
- Iec Conformance
- NO
- Terminal Adımı
- 1mm
- Yayın Yılı
- 2016
- Pitch Mating
- 0.039 1.00mm
- Contact Finish Thickness Mating
- 3.00μin 0.076μm
- Radyasyon Dayanımı
- No
- Pozisyon Sayısı
- 20
- RoHS Durumu
- ROHS3 Compliant
- Fabrika Tedarik Süresi
- 3 Weeks
- Contact Shape
- Square
- Insulation Color
- Black
- Sıra Sayısı
- 2
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- JESD-609 Kodu
- e3
- Mil Conformance
- NO
- Ambalaj
- Tape & Reel (TR)
- Seri
- FTMH
- Shrouding
- Unshrouded
