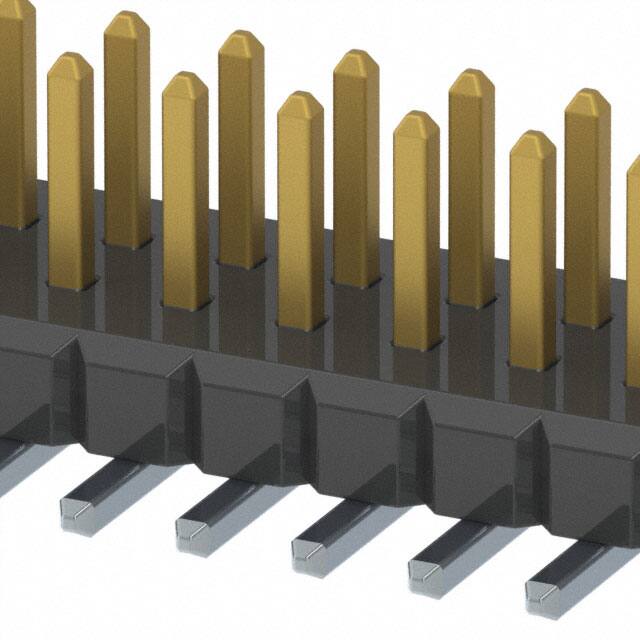

FTM-112-02-L-DV

Specifications

Din Conformance

NO

Contact Lengthmating

0.075 1.90mm

Montaj

Surface Mount

Row Spacing Mating

0.039 (1.00mm)

Mating Contact Pitch

0.039 inch

Insulation Height

0.038 0.97mm

Filter Feature

NO

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Montaj Tipi

Surface Mount

Parça Durumu

Active

Contact Finish Post

Tin

Iec Conformance

NO

Reach Svhc

No SVHC

Terminal Adımı

1mm

Contact Type

Male Pin

Style

Board to Board

Contact Finish Thickness Mating

10.0μin 0.25μm

Yayın Yılı

2013

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

3 Weeks

Insulation Color

Black

Number Of Pcb Rows

2

Sıra Sayısı

2

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Reference Standard

UL

Gender

Male

Option

GENERAL PURPOSE

Connector Type

Header, Cuttable

Total Number Of Contacts

24

Current Rating Amps

2.8A per Contact

Additional Feature

E.L.P., LOW PROFILE

Terminal

Solder

Pitch Mating

0.039 1.00mm

RoHS Durumu

ROHS3 Compliant

Pozisyon Sayısı

24
