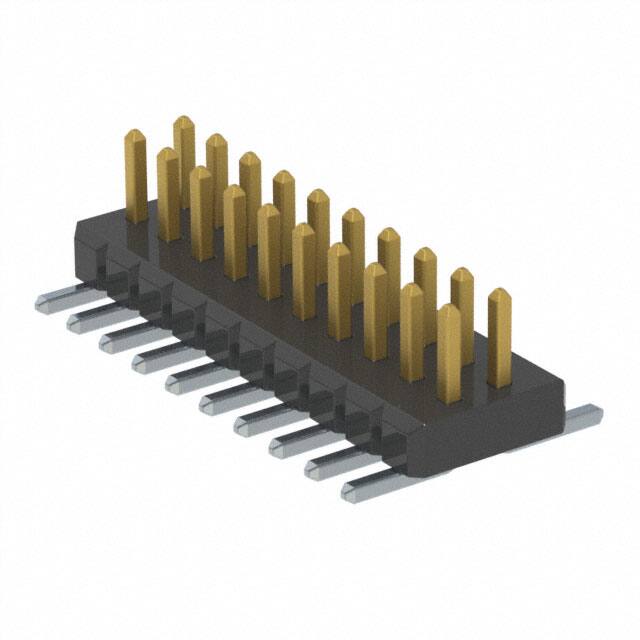

FTM-110-03-L-DV

Specifications

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Filter Feature

NO

Insulation Height

0.038 0.97mm

Mating Contact Pitch

0.039 inch

Row Spacing Mating

0.039 (1.00mm)

Montaj

Surface Mount

Din Conformance

NO

Contact Lengthmating

0.065 1.65mm

Pcb Contact Row Spacing

3.175 mm

Parça Durumu

Active

Contact Finish Post

Tin

Montaj Tipi

Surface Mount

Yayın Yılı

2013

Contact Finish Thickness Mating

10.0μin 0.25μm

Style

Board to Board

Contact Type

Male Pin

Terminal Adımı

1mm

Iec Conformance

NO

Reach Svhc

No SVHC

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Insulation Color

Black

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

3 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Plating Thickness

10μin

Gender

Male

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Number Of Positions Loaded

All

Additional Feature

E.L.P., LOW PROFILE

Current Rating Amps

2.8A per Contact

Total Number Of Contacts

20

Connector Type

Header, Cuttable

Option

GENERAL PURPOSE

Pozisyon Sayısı

20

RoHS Durumu

ROHS3 Compliant
