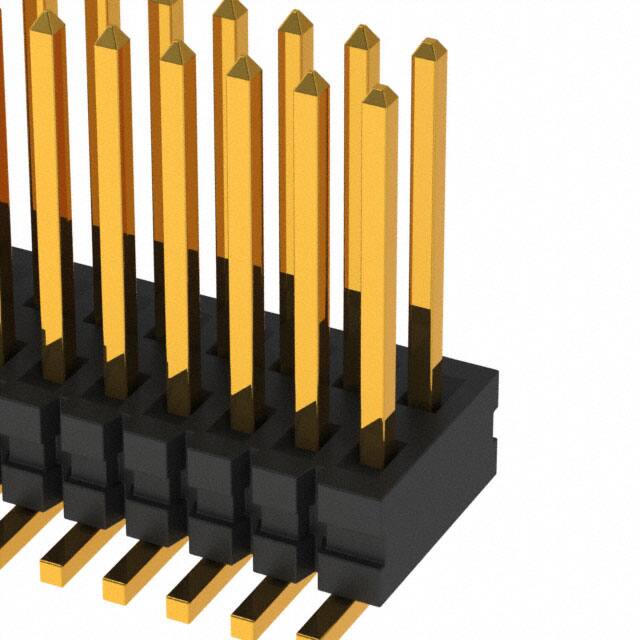

FTE-150-01-G-DV

Specifications

Seri

FTE

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Filter Feature

NO

Radyasyon Dayanımı

No

Plating Thickness

10μin

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Shrouding

Unshrouded

Total Number Of Contacts

100

Insulation Height

0.055 1.40mm

Number Of Pcb Rows

2

Contact Finish Thickness Mating

10.0μin 0.25μm

Reach Svhc

No SVHC

ECCN Kodu

EAR99

Pozisyon Sayısı

100

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Surface Mount

Terminal

Solder

Row Spacing Mating

0.047 (1.20mm)

Housing Material

Plastic

Current Rating Amps

2.7A per Contact

Contact Materials

Phosphor Bronze

Contact Finish Mating

Gold

Number Of Conductors

ONE

Terminal Adımı

0.8mm

Reference Standard

UL

Kurşunsuz Kodu

yes

Pitch Mating

0.031 0.80mm

Pcb Contact Pattern

RECTANGULAR

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

Sıra Sayısı

2

Mil Conformance

NO

Connector Type

Header

Parça Durumu

Active

Fabrika Tedarik Süresi

2 Weeks
