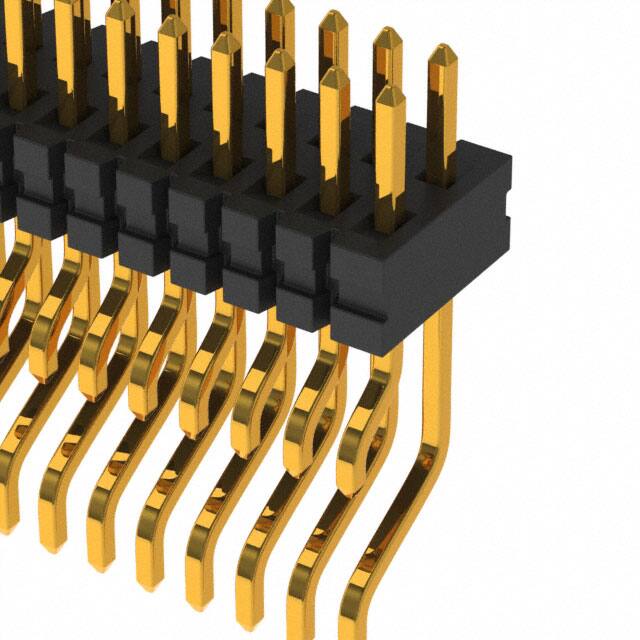

FTE-133-01-G-DH

Specifications

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Pitch Mating

0.031 0.80mm

Seri

FTE

Insulation Color

Black

Contact Finish Post

Gold

Insulation Height

0.120 3.05mm

Number Of Contacts

66

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Finish Thickness Mating

10.0μin 0.25μm

Uzunluk

26.4mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount, Right Angle

Shrouding

Unshrouded

Parça Durumu

Active

Yükseklik

3.05mm

Connector Type

Header

Sıra Sayısı

2

Montaj

Surface Mount

Terminal

Solder

Yayın Yılı

2005

Number Of Positions Loaded

All

Contact Shape

Square

Contact Lengthmating

0.075 1.90mm

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Renk

Black

Kurşunsuz

Lead Free

Pozisyon Sayısı

66

Genişlik

1.38mm

Contact Finish Mating

Gold

Style

Board to Board

Fastening Type

Push-Pull

Lead Pitch

800μm

Pitch

787.4μm

Contact Materials

Phosphor Bronze

Contact Plating

Gold
