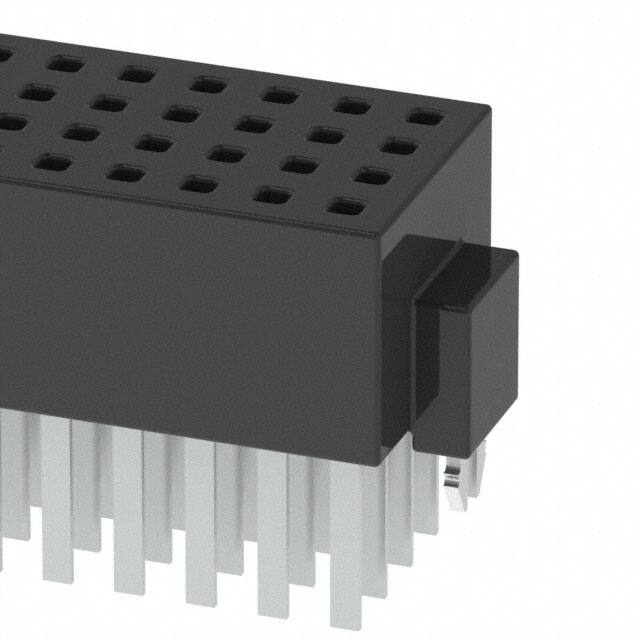

FOLC-125-04-S-Q-LC

Specifications

Row Spacing Mating

0.100 (2.54mm)

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Plating Thickness

30μin

Terminal Adımı

1.27mm

Mating Contact Pitch

0.05 inch

Mixed Contacts

NO

Connector Type

Receptacle

Contact Length Post

0.120 3.05mm

Body Length Or Diameter

1.35 inch

Contact Shape

Square

Number Of Positions Loaded

All

Insulation Color

Black

Contact Finish Thickness Mating

30.0μin 0.76μm

Material Flammability Rating

UL94 V-0

Ambalaj

Tube

Additional Feature

HIGH RELIABILITY TIGER EYE CONTACT

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Insertion Forcemax

1.39 N

Insulation Materials

Liquid Crystal Polymer (LCP)

Terminal

Solder

Reliability

COMMERCIAL

Din Conformance

NO

Yayın Yılı

2000

Seri

FOURRAY™ FOLC

Özellikler

Board Lock

JESD-609 Kodu

e3

Montaj Tipi

Through Hole

Body Breadth

0.22 inch

Filter Feature

NO

Pcb Contact Row Spacing

1.27 mm

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Pitch Mating

0.050 1.27mm

Body Depth

0.18 inch

Withdrawl Forcemin

1.112 N

Çalışma Sıcaklığı

-55°C~125°C

Iec Conformance

NO

Number Of Pcb Rows

4
