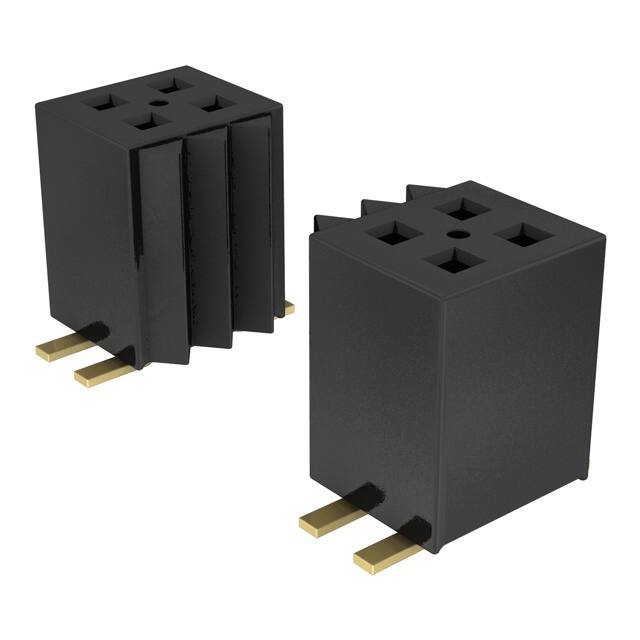

FLE-110-01-G-DV-P-TR

Specifications

Durability

100 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Uzunluk

12.81mm

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Height

0.172 4.37mm

Total Number Of Contacts

20

Filter Feature

NO

Radyasyon Dayanımı

No

Plating Thickness

10μin

Mating Contact Pitch

0.05 inch

Insulation Materials

Liquid Crystal Polymer (LCP)

RoHS Durumu

ROHS3 Compliant

Depth

4.6mm

Insulation Color

Black

Body Breadth

0.131 inch

Seri

FLE

Özellikler

Pick and Place

Number Of Conductors

ONE

Contact Finish Mating

Gold

Housing Material

Polymer

Current Rating Amps

2A per Contact

Row Spacing Mating

0.050 (1.27mm)

Contact Materials

Phosphor Bronze

Pcb Contact Row Spacing

3.81 mm

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Terminal

Solder

Pozisyon Sayısı

20

ECCN Kodu

EAR99

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Thickness Post

3.00μin 0.076μm

Iec Conformance

NO

Din Conformance

NO

Sıra Sayısı

2

Fabrika Tedarik Süresi

3 Weeks

Parça Durumu

Active

Connector Type

Receptacle
