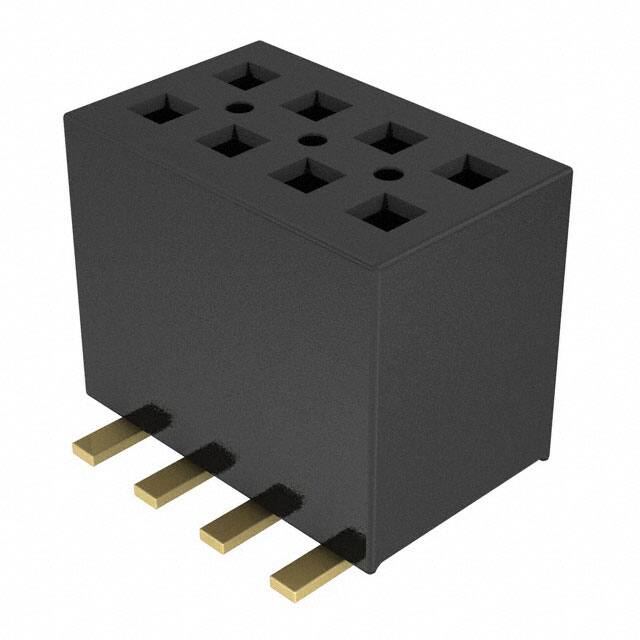

FLE-104-01-G-DV-TR

Specifications

RoHS Durumu

ROHS3 Compliant

Depth

3.33mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Seri

FLE

Mounting Option1

LOCKING

Insulation Color

Black

Body Breadth

0.131 inch

Insulation Height

0.172 4.37mm

Total Number Of Contacts

8

Number Of Pcb Rows

2

Contact Finish Thickness Mating

10.0μin 0.25μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Uzunluk

5.19mm

Montaj Tipi

Surface Mount

Radyasyon Dayanımı

No

Plating Thickness

10μin

Mating Contact Pitch

0.05 inch

Polarization Key

POLARIZED HOUSING

Terminal

Solder

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

ECCN Kodu

EAR99

Pozisyon Sayısı

8

Number Of Conductors

ONE

Contact Finish Mating

Gold

Manufacturer Package Identifier

FLE-104-01-G-DV-TR

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.050 (1.27mm)

Current Rating Amps

2A per Contact

Housing Material

Polymer

Orientation

Straight

Withdrawl Forcemin

.417 N

Kurşunsuz Kodu

yes

Pitch Mating

0.050 1.27mm

Pcb Contact Pattern

RECTANGULAR

Contact Type

Female Socket

Reference Standard

UL, CSA

Contact Finish Thickness Post

3.00μin 0.076μm
