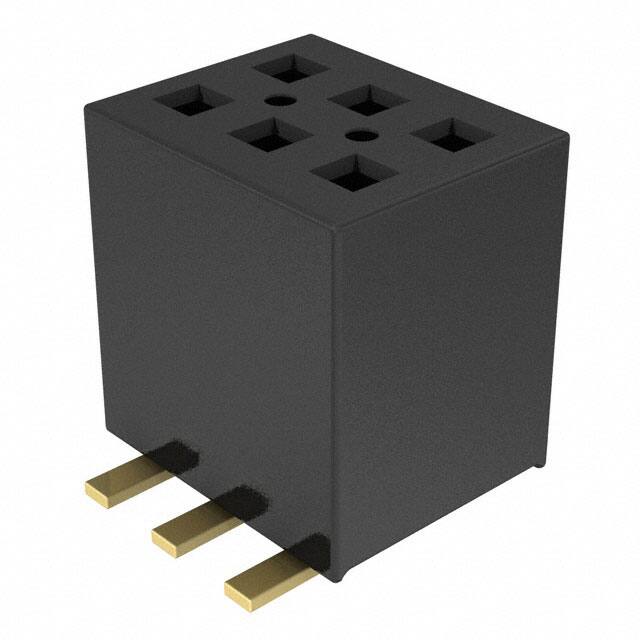

FLE-103-01-G-DV

Specifications

Body Breadth

0.131 inch

Seri

FLE

Depth

4.6mm

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Filter Feature

NO

Radyasyon Dayanımı

No

Plating Thickness

10μin

Mating Contact Pitch

0.05 inch

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Uzunluk

3.92mm

Durability

100 Cycles

Total Number Of Contacts

6

Insulation Height

0.172 4.37mm

Number Of Pcb Rows

2

Contact Finish Thickness Mating

10.0μin 0.25μm

Reach Svhc

No SVHC

Kurşunsuz

Lead Free

Pozisyon Sayısı

6

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Surface Mount

Terminal

Solder

Row Spacing Mating

0.050 (1.27mm)

Current Rating Amps

2A per Contact

Housing Material

Polymer

Pcb Contact Row Spacing

3.81 mm

Contact Materials

Phosphor Bronze

Contact Finish Mating

Gold

Number Of Conductors

ONE

Reference Standard

UL, CSA

Contact Type

Female Socket

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.050 1.27mm

Kurşunsuz Kodu

yes

Orientation

Straight

Withdrawl Forcemin

.417 N

Sıra Sayısı

2
