Volume pricing
- 1+ pcs$1.36
- 10+ pcs$1.29
- 100+ pcs$1.21
- 500+ pcs$1.14
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

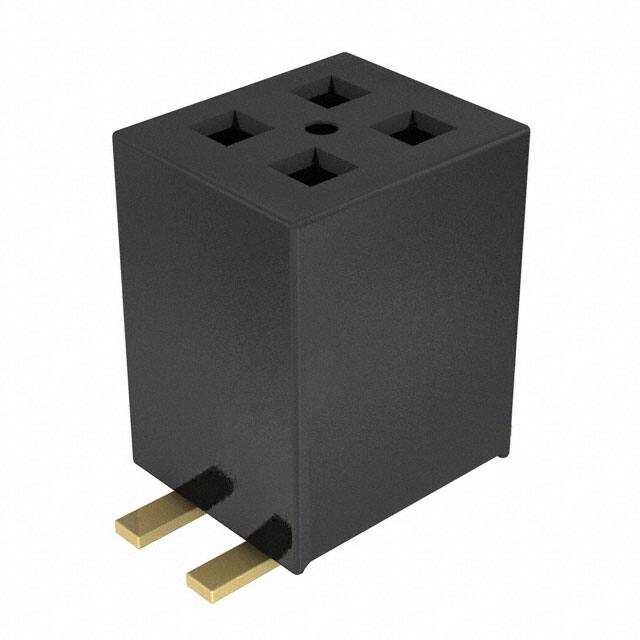

Specifications
- Additional Feature
- E.L.P., TIGER BEAM CONTACT
- Mixed Contacts
- NO
- Fastening Type
- Push-Pull
- Contact Resistance
- 15mOhm
- Style
- Board to Board or Cable
- Option
- GENERAL PURPOSE
- Housing Color
- Black
- Ambalaj
- Bulk
- Contact Shape
- Square
- Yayın Yılı
- 2009
- Genişlik
- 3.33mm
- Contact Finish Thickness Post
- 3.00μin 0.076μm
- Din Conformance
- NO
- Iec Conformance
- NO
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Mil Conformance
- NO
- Connector Type
- Receptacle
- Parça Durumu
- Active
- Sıra Sayısı
- 2
- Orientation
- Straight
- Contact Type
- Female Socket
- Kurşunsuz Kodu
- yes
- Pitch Mating
- 0.050 1.27mm
- Pcb Contact Pattern
- RECTANGULAR
- Reference Standard
- UL, CSA
- Contact Finish Mating
- Gold
- Number Of Conductors
- ONE
- Contact Materials
- Phosphor Bronze
- Pcb Contact Row Spacing
- 3.81 mm
- Housing Material
- Polymer
- Current Rating Amps
- 2A per Contact
- Row Spacing Mating
- 0.050 (1.27mm)
- Terminal
- Solder
- Montaj
- Surface Mount
- Çalışma Sıcaklığı
- -55°C~125°C
- Number Of Positions Loaded
- All
- Kurşunsuz
- Lead Free
- Pozisyon Sayısı
- 4
- Reach Svhc
- No SVHC
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
