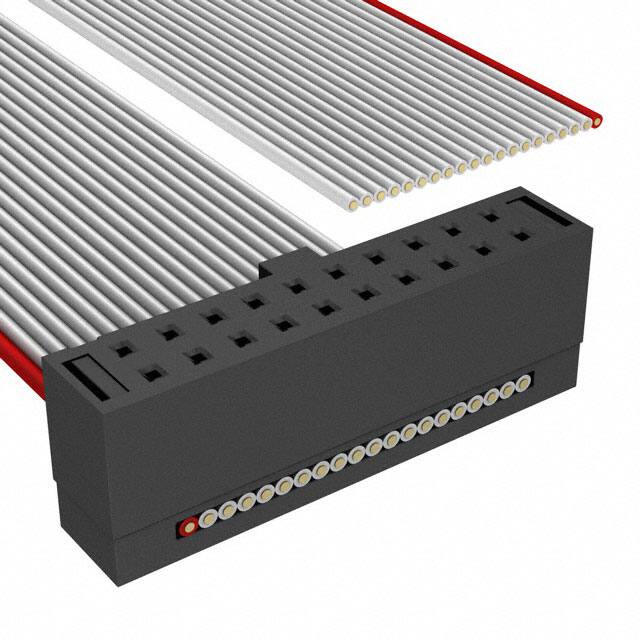

FFSD-10-S-06.00-01-N

Specifications

Pitch Connector

0.050 1.27mm

Connector Type A

IDC, Receptacle

Contact Finish

Gold

Contact Finish Thickness

10.0μin 0.25μm

Pitch Cable

0.025 0.64mm

Kurşunsuz Kodu

yes

Gender

Receptacle

Radyasyon Dayanımı

No

Wirecable Type

Flat Flex

RoHS Durumu

ROHS3 Compliant

Contact Materials

BERYLLIUM COPPER

Ambalaj

Bulk

Seri

Tiger Eye™ FFSD

Polarization Key

POLARIZED HOUSING

Rated Current Signal

0.5A

Number Of Contacts

10

Mating Contact Pitch

0.05 inch

Operating Temperature Min

-40°C

Parça Durumu

Active

Cable Termination

IDC

Reach Svhc

No SVHC

Kablo Uzunluğu

152mm

Sıra Sayısı

2

Uzunluk

0.500' 152.40mm 6.00

Connector Type

Socket to Cable

Withdrawl Forcemin

.834 N

Bodyshell Style

PLUG

Reference Standard

UL

Shielding

Unshielded

Contact Design

PREASSEM CONN

Nem Hassasiyeti (MSL)

Not Applicable

Contact Resistance

15mOhm

Pozisyon Sayısı

20

Insertion Forcemax

1.39 N

Insulation Materials

POLYBUTYLENE TEREPHTHALATE(PBT)

Contact Style

SQ PIN-SKT

Renk

Gray, Ribbon

JESD-609 Kodu

e3

Özellikler

Polarizing Key

Mounting Option1

LOCKING
