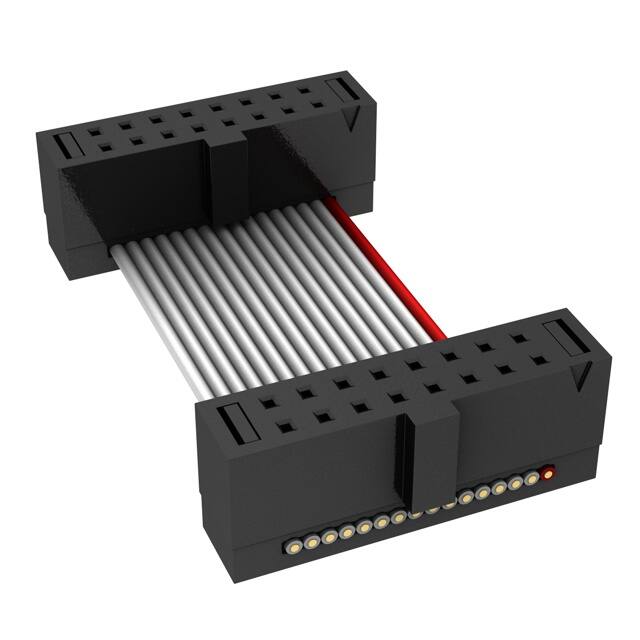

FFSD-08-D-12.00-01-N

Specifications

RoHS Durumu

ROHS3 Compliant

Contact Materials

Copper

Radyasyon Dayanımı

No

Gender

Receptacle

Wirecable Type

Flat Flex

Seri

Tiger Eye™ FFSD

Pitch Connector

0.050 1.27mm

Connector Type A

Connector, IDC, Receptacle

Contact Finish Thickness

10.0μin 0.25μm

Contact Finish

Gold

Kurşunsuz Kodu

yes

Wirecable Gauge

30 AWG

Pitch Cable

0.025 0.64mm

Connector Type B

Connector, IDC, Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Polarizing Key

Renk

Gray, Ribbon

Maks. Çalışma Sıcaklığı

105°C

Kurşunsuz

Lead Free

Terminal

IDT

Kablo Uzunluğu

304mm

Min. Çalışma Sıcaklığı

-40°C

Parça Durumu

Active

Max Current Rating

500mA

Cable Termination

IDC

Reach Svhc

No SVHC

Sıra Sayısı

2

Uzunluk

1.00' 304.80mm

Shielding

Unshielded

Connector Type

Socket to Socket

Number Of Cores

16
