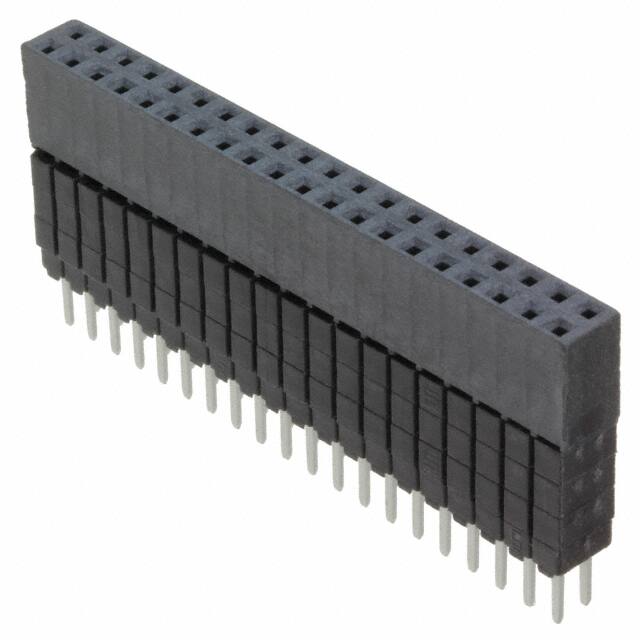

ESW-120-44-L-D

Specifications

Option

GENERAL PURPOSE

Housing Material

Polyester

Body Breadth

0.195 inch

Terminal

Solder

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)

Max Voltage Rating Ac

550V

Mounting Option1

LOCKING

Mil Conformance

NO

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Mixed Contacts

NO

Mating Contact Pitch

0.1 inch

Uzunluk

51.31mm

Çalışma Sıcaklığı

-55°C~125°C

Pcb Contact Pattern

RECTANGULAR

Seri

ESW

Reference Standard

UL, CSA

JESD-609 Kodu

e3

Plating Thickness

10μin

Orientation

Straight

Depth

4.95mm

Iec Conformance

NO

Number Of Conductors

ONE

ECCN Kodu

EAR99

Filter Feature

NO

Yayın Yılı

2015

Number Of Pcb Rows

2

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Nominal Gerilim

550VAC

Parça Durumu

Active

Fastening Type

Push-Pull

Max Current Rating

6.9A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Materials

Phosphor Bronze

Reliability

COMMERCIAL

Gender

Receptacle

Insulation Materials

Liquid Crystal Polymer (LCP)
