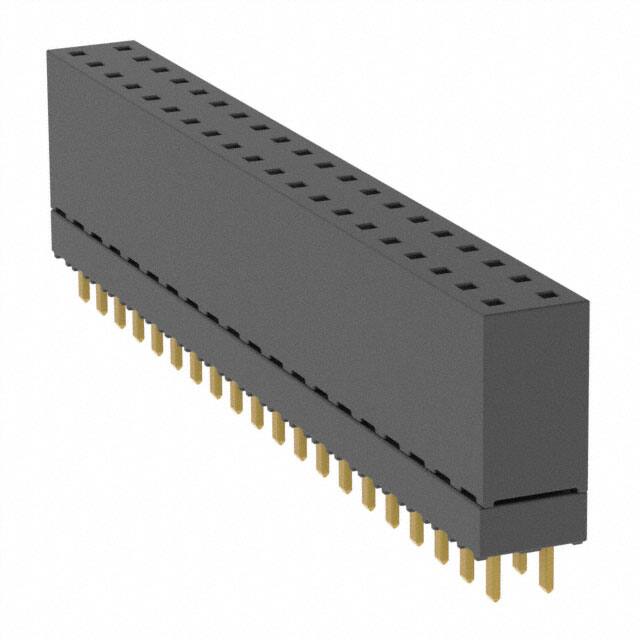

ESW-120-37-G-D

Specifications

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)

Max Voltage Rating Ac

550V

Mil Conformance

NO

Mounting Option1

LOCKING

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Mixed Contacts

NO

Mating Contact Pitch

0.1 inch

Option

GENERAL PURPOSE

Housing Material

Polyester

Terminal

Solder

Body Breadth

0.195 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Additional Feature

LOW INSERTION FORCE

JESD-609 Kodu

e4

Number Of Conductors

ONE

Orientation

Straight

Depth

4.95mm

Iec Conformance

NO

ECCN Kodu

EAR99

Uzunluk

51.31mm

Çalışma Sıcaklığı

-55°C~125°C

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL, CSA

Seri

ESW

Nominal Gerilim

550VAC

Parça Durumu

Active

Kurşunsuz Kodu

yes

Max Current Rating

6.9A

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Phosphor Bronze

Gender

Receptacle

Reliability

COMMERCIAL

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Color

Black

Filter Feature

NO

Number Of Pcb Rows

2
