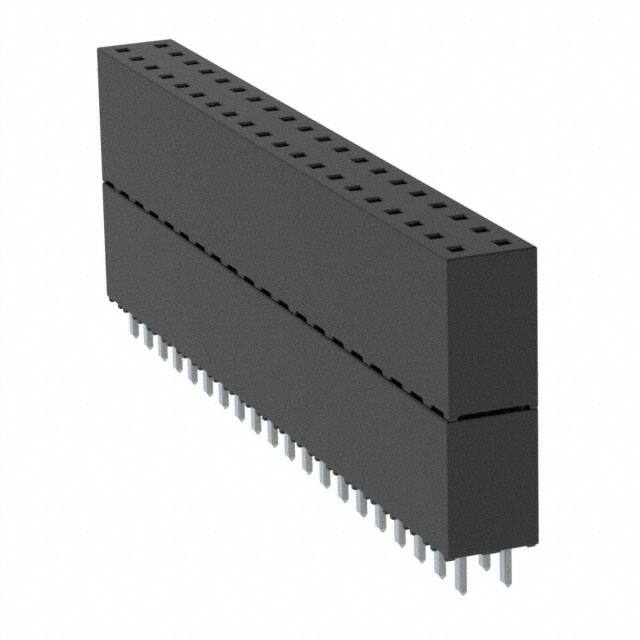

ESW-120-33-L-D

Specifications

Din Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Contact Resistance

10mOhm

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Length Post

0.090 2.29mm

Contact Shape

Square

Pozisyon Sayısı

40

Radyasyon Dayanımı

No

Current Rating Amps

5.2A per Contact

Polarization Key

POLARIZED HOUSING

RoHS Durumu

ROHS3 Compliant

Style

Board to Board

Insulation Height

0.635 16.13mm

Ambalaj

Tube

Contact Finish Post

Tin

Sıra Sayısı

2

Contact Type

Forked

Connector Type

Elevated Socket

Number Of Pcb Rows

2

Yayın Yılı

2015

Pitch Mating

0.100 2.54mm

Filter Feature

NO

Gender

Female

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Fastening Type

Push-Pull

Max Current Rating

6.9A

Kurşunsuz Kodu

yes

Nominal Gerilim

550VAC

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~125°C

Seri

ESW

Reference Standard

UL, CSA

Uzunluk

51.31mm

Plating Thickness

10μin
