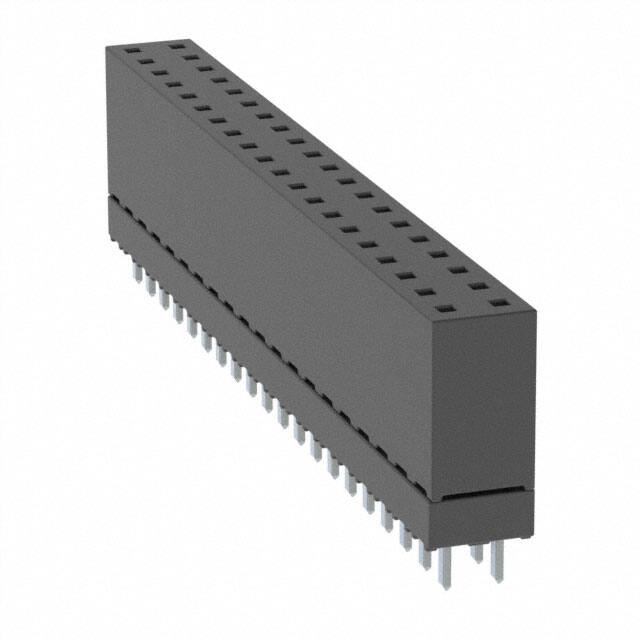

ESW-120-12-S-D

Specifications

Style

Board to Board

Insertion Forcemax

1.668 N

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

2

Contact Type

Forked

Connector Type

Elevated Socket

Insulation Height

0.435 11.05mm

Ambalaj

Tube

Contact Finish Post

Tin

Contact Resistance

10mOhm

Contact Finish Thickness Mating

30.0μin 0.76μm

Din Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Contact Shape

Square

Pozisyon Sayısı

40

Current Rating Amps

5.2A per Contact

Radyasyon Dayanımı

No

Contact Length Post

0.090 2.29mm

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Gender

Receptacle

Reliability

COMMERCIAL

Withdrawl Forcemin

1.39 N

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

Not Applicable

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Max Current Rating

6.9A

Kurşunsuz Kodu

yes

Parça Durumu

Active

Nominal Gerilim

550VAC

Pitch Mating

0.100 2.54mm

Yayın Yılı

2011

Number Of Pcb Rows

2

Filter Feature

NO

ECCN Kodu

EAR99

Orientation

Straight

Depth

4.95mm

Iec Conformance

NO

Number Of Conductors

ONE
