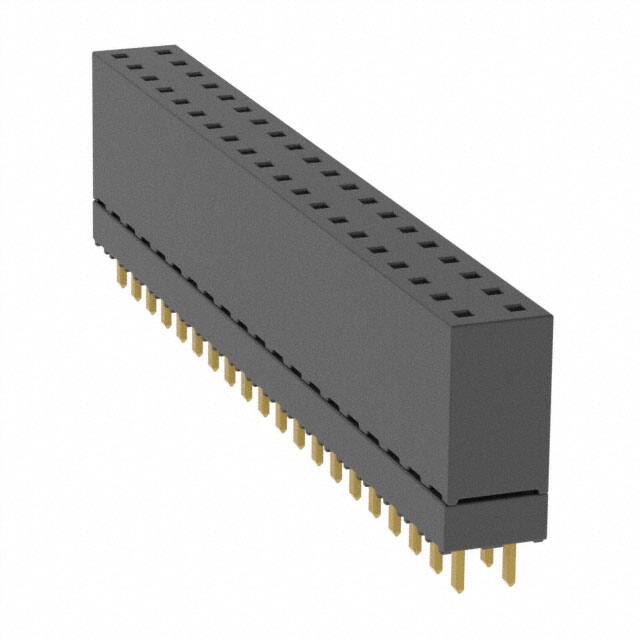

ESW-120-12-G-D

Specifications

Contact Resistance

10mOhm

Contact Finish Thickness Mating

20.0μin 0.51μm

Din Conformance

NO

Fabrika Tedarik Süresi

4 Weeks

Current Rating Amps

5.2A per Contact

Radyasyon Dayanımı

No

Pozisyon Sayısı

40

Contact Shape

Square

Contact Length Post

0.090 2.29mm

Contact Finish Thickness Post

3.00μin 0.076μm

Style

Board to Board

Montaj

Through Hole

RoHS Durumu

ROHS3 Compliant

Polarization Key

POLARIZED HOUSING

Contact Type

Forked

Sıra Sayısı

2

Connector Type

Elevated Socket

Ambalaj

Tube

Insulation Height

0.435 11.05mm

Pitch Mating

0.100 2.54mm

Yayın Yılı

2010

Number Of Pcb Rows

2

Filter Feature

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Reliability

COMMERCIAL

Gender

Receptacle

Contact Materials

Phosphor Bronze

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Current Rating

6.9A

Fastening Type

Push-Pull

Parça Durumu

Active

Nominal Gerilim

550VAC

Kurşunsuz Kodu

yes

Reference Standard

UL, CSA

Seri

ESW

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~125°C

Uzunluk

51.31mm

ECCN Kodu

EAR99
