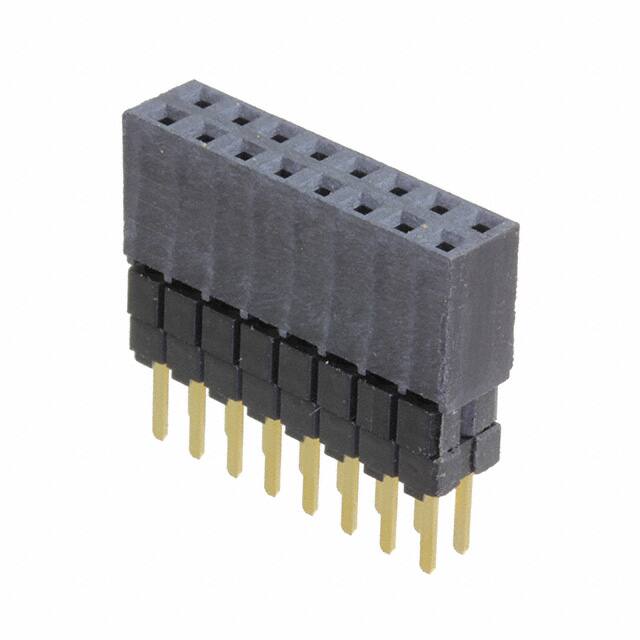

ESW-108-23-G-D

Specifications

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Mating Contact Pitch

0.1 inch

Mixed Contacts

NO

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Mil Conformance

NO

Mounting Option1

LOCKING

Max Voltage Rating Ac

550V

Terminal

Solder

Body Breadth

0.195 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Option

GENERAL PURPOSE

Housing Material

Polyester

ECCN Kodu

EAR99

Number Of Conductors

ONE

Iec Conformance

NO

Depth

4.95mm

Orientation

Straight

Additional Feature

TIGER BUY CONTACT

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~125°C

Reference Standard

UL, CSA

Seri

ESW

HTS Kodu

8536.69.40.40

Uzunluk

20.83mm

Reliability

COMMERCIAL

Gender

Receptacle

Contact Materials

Phosphor Bronze

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Max Current Rating

6.9A

Fastening Type

Push-Pull

Nominal Gerilim

550VAC

Parça Durumu

Active

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

2
