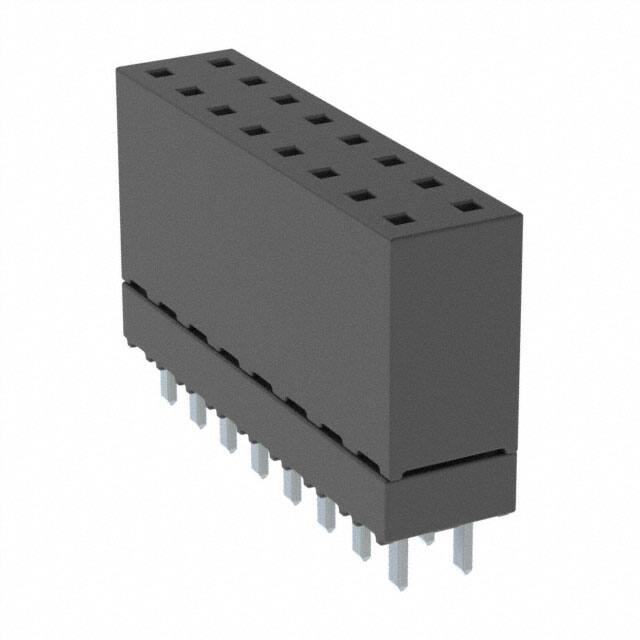

ESW-108-12-L-D

Specifications

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Mil Conformance

NO

Mounting Option1

LOCKING

Max Voltage Rating Ac

550V

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Mating Contact Pitch

0.1 inch

Mixed Contacts

NO

Option

GENERAL PURPOSE

Housing Material

Polyester

Terminal

Solder

Body Breadth

0.195 inch

JESD-609 Kodu

e3

Plating Thickness

10μin

Number Of Conductors

ONE

Orientation

Vertical

Depth

4.95mm

Iec Conformance

NO

Uzunluk

20.83mm

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~125°C

Reference Standard

UL, CSA

Seri

ESW

Max Current Rating

6.9A

Fastening Type

Push-Pull

Nominal Gerilim

550VAC

Parça Durumu

Active

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Gender

Receptacle

Contact Materials

Phosphor Bronze

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Filter Feature

NO

Yayın Yılı

2015

Number Of Pcb Rows

2

Pitch Mating

0.100 2.54mm
