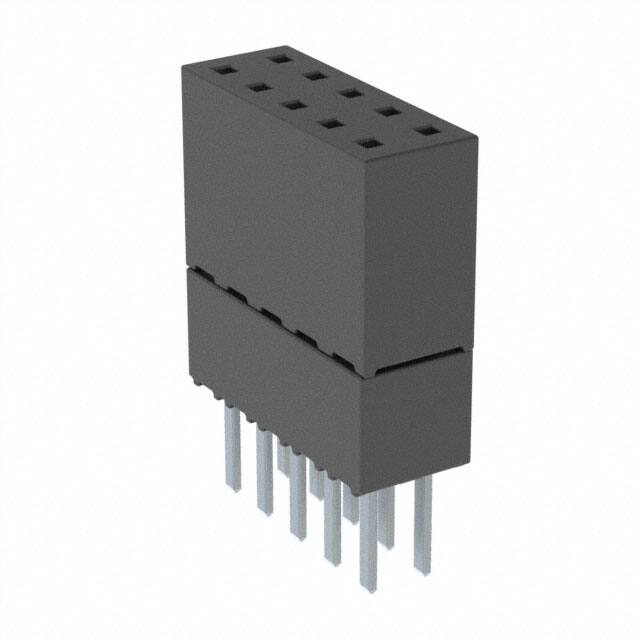

ESW-105-23-T-D

Specifications

Contact Resistance

10mOhm

Fabrika Tedarik Süresi

3 Weeks

Din Conformance

NO

Radyasyon Dayanımı

No

Current Rating Amps

5.2A per Contact

Contact Shape

Square

Pozisyon Sayısı

10

Contact Length Post

0.190 4.83mm

Style

Board to Board

RoHS Durumu

ROHS3 Compliant

Polarization Key

POLARIZED HOUSING

Connector Type

Elevated Socket

Sıra Sayısı

2

Contact Type

Forked

Ambalaj

Bulk

Insulation Height

0.535 13.60mm

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

2

Filter Feature

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Color

Black

Contact Materials

Phosphor Bronze

Reliability

COMMERCIAL

Gender

Receptacle

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Nominal Gerilim

550VAC

Kurşunsuz Kodu

yes

Max Current Rating

6.9A

Fastening Type

Push-Pull

Reference Standard

UL, CSA

Seri

ESW

Çalışma Sıcaklığı

-55°C~105°C

Pcb Contact Pattern

RECTANGULAR

Uzunluk

13.21mm

Number Of Conductors

ONE

Depth

4.95mm

Iec Conformance

NO

Orientation

Straight
