Volume pricing
- 1+ pcs$1.99
- 10+ pcs$1.88
- 100+ pcs$1.77
- 500+ pcs$1.67
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

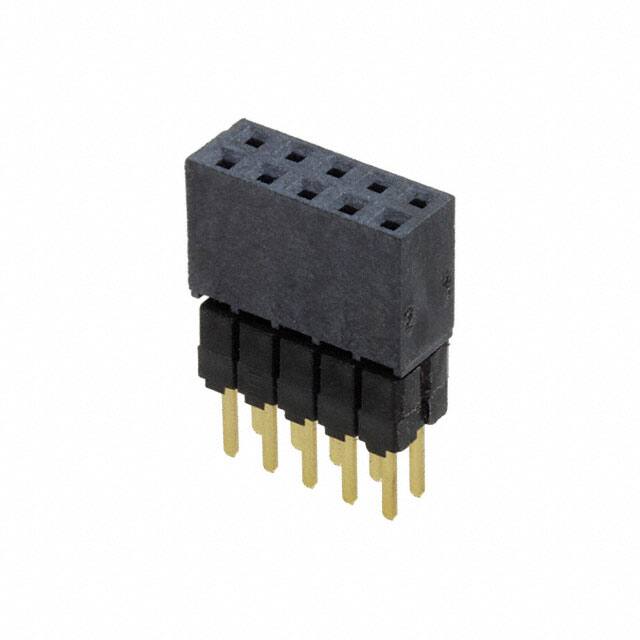

Specifications
- Fabrika Tedarik Süresi
- 3 Weeks
- Din Conformance
- NO
- Contact Finish Thickness Mating
- 20.0μin 0.51μm
- Contact Resistance
- 10mOhm
- Contact Finish Thickness Post
- 3.00μin 0.076μm
- Contact Length Post
- 0.190 4.83mm
- Pozisyon Sayısı
- 10
- Contact Shape
- Square
- Current Rating Amps
- 5.2A per Contact
- Radyasyon Dayanımı
- No
- Polarization Key
- POLARIZED HOUSING
- RoHS Durumu
- ROHS3 Compliant
- Style
- Board to Board
- Insulation Height
- 0.535 13.60mm
- Ambalaj
- Bulk
- Connector Type
- Elevated Socket
- Sıra Sayısı
- 2
- Contact Type
- Forked
- Yayın Yılı
- 2011
- Number Of Pcb Rows
- 2
- Pitch Mating
- 0.100 2.54mm
- Filter Feature
- NO
- Contact Materials
- Phosphor Bronze
- Reliability
- COMMERCIAL
- Gender
- Receptacle
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Insulation Color
- Black
- Kurşunsuz Kodu
- yes
- Nominal Gerilim
- 550VAC
- Parça Durumu
- Active
- Fastening Type
- Push-Pull
- Max Current Rating
- 6.9A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Material Flammability Rating
- UL94 V-0
- Çalışma Sıcaklığı
- -55°C~125°C
- Pcb Contact Pattern
- RECTANGULAR
- Seri
- ESW
- Reference Standard
- UL, CSA
- HTS Kodu
- 8536.69.40.40
- Uzunluk
- 13.21mm
