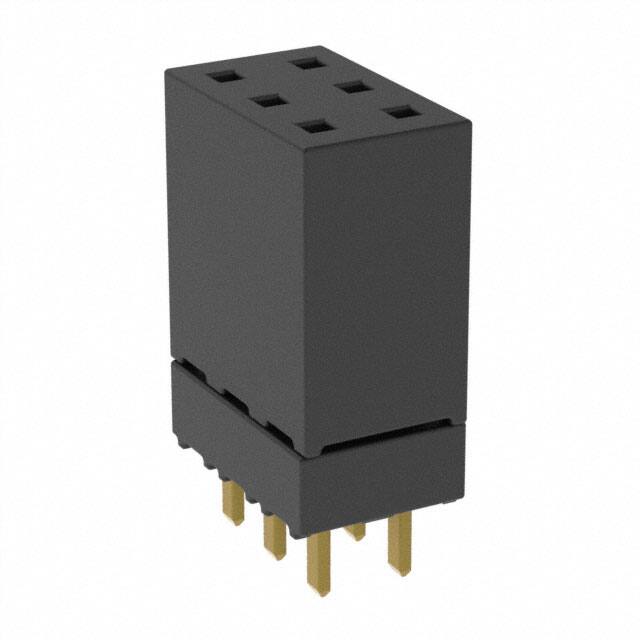

ESW-103-12-G-D

Specifications

Polarization Key

POLARIZED HOUSING

RoHS Durumu

ROHS3 Compliant

Style

Board to Board

Insulation Height

0.435 11.05mm

Ambalaj

Bulk

Sıra Sayısı

2

Contact Type

Forked

Connector Type

Elevated Socket

Din Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Contact Resistance

10mOhm

Contact Finish Thickness Mating

20.0μin 0.51μm

Contact Length Post

0.090 2.29mm

Contact Finish Thickness Post

3.00μin 0.076μm

Pozisyon Sayısı

6

Contact Shape

Square

Current Rating Amps

5.2A per Contact

Radyasyon Dayanımı

No

Reliability

COMMERCIAL

Gender

Receptacle

Contact Materials

Phosphor Bronze

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Fastening Type

Push-Pull

Max Current Rating

6.9A

Kurşunsuz Kodu

yes

Nominal Gerilim

550VAC

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Number Of Pcb Rows

2

Pitch Mating

0.100 2.54mm

Filter Feature

NO

ECCN Kodu

EAR99

Orientation

Straight

Depth

4.95mm

Iec Conformance

NO

Number Of Conductors

ONE

JESD-609 Kodu

e4

Additional Feature

TIGER BUY CONTACT
