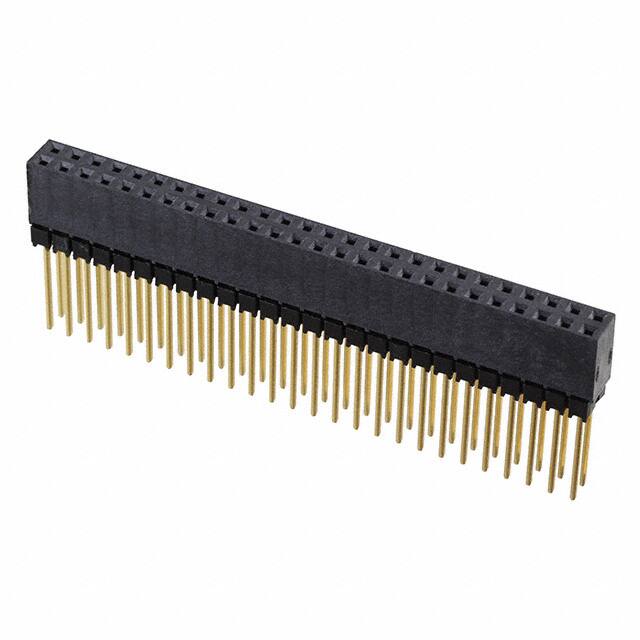

ESQ-126-39-G-D

Specifications

Depth

4.95mm

ECCN Kodu

EAR99

Current Rating Amps

5.7A per Contact

Sıra Sayısı

2

Contact Finish Thickness Post

3.00μin 0.076μm

Style

Board to Board

Mating Contact Pitch

0.1 inch

Max Current Rating

6.9A

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

550V

Housing Material

Polyester

Seri

ESQ

Pozisyon Sayısı

52

Pitch Mating

0.100 2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Montaj Tipi

Through Hole

Filter Feature

NO

JESD-609 Kodu

e4

Mounting Option1

LOCKING

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Number Of Positions Loaded

All

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

20.0μin 0.51μm

Kurşunsuz Kodu

yes

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

HTS Kodu

8536.69.40.40

Orientation

Straight

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Contact Resistance

10mOhm

Fabrika Tedarik Süresi

3 Weeks
