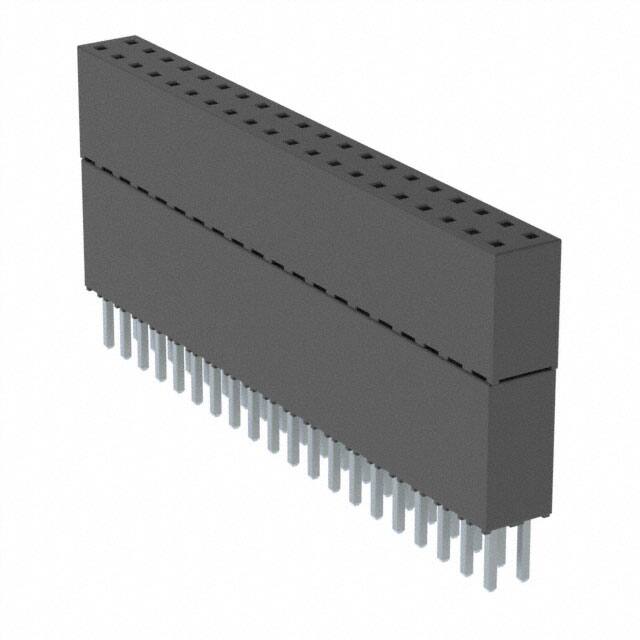

ESQ-120-44-S-D

Specifications

Max Current Rating

6.9A

Style

Board to Board

Mating Contact Pitch

0.1 inch

Sıra Sayısı

2

Depth

4.95mm

ECCN Kodu

EAR99

Current Rating Amps

5.7A per Contact

JESD-609 Kodu

e3

Mounting Option1

LOCKING

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Montaj Tipi

Through Hole

Seri

ESQ

Pozisyon Sayısı

40

Pitch Mating

0.100 2.54mm

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

550V

Housing Material

Polyester

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Orientation

Straight

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Iec Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

Gender

Receptacle

Kurşunsuz Kodu

yes

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

30.0μin 0.76μm

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Yayın Yılı

2013

Contact Resistance

10mOhm
