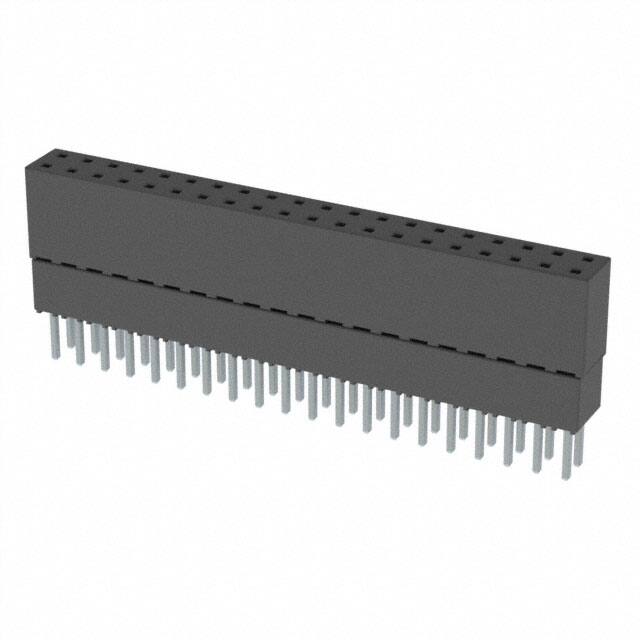

ESQ-120-23-T-D

Specifications

Mil Conformance

NO

Insulation Height

0.535 13.60mm

Terminal

Solder

Number Of Conductors

ONE

Contact Finish Mating

Tin

Contact Length Post

0.190 4.83mm

Çalışma Sıcaklığı

-55°C~105°C

Connector Type

Elevated Socket

Insertion Forcemax

1.668 N

Ambalaj

Tube

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

3 Weeks

Contact Resistance

10mOhm

Reliability

COMMERCIAL

Row Spacing Mating

0.100 (2.54mm)

Yayın Yılı

2011

Uzunluk

51.31mm

Contact Shape

Square

Mixed Contacts

NO

Nominal Gerilim

550VAC

Parça Durumu

Active

Fastening Type

Push-Pull

Contact Type

Forked

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Insulation Color

Black

Kurşunsuz Kodu

yes

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Contact Materials

Phosphor Bronze

Orientation

Straight

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Sıra Sayısı

2

ECCN Kodu

EAR99
