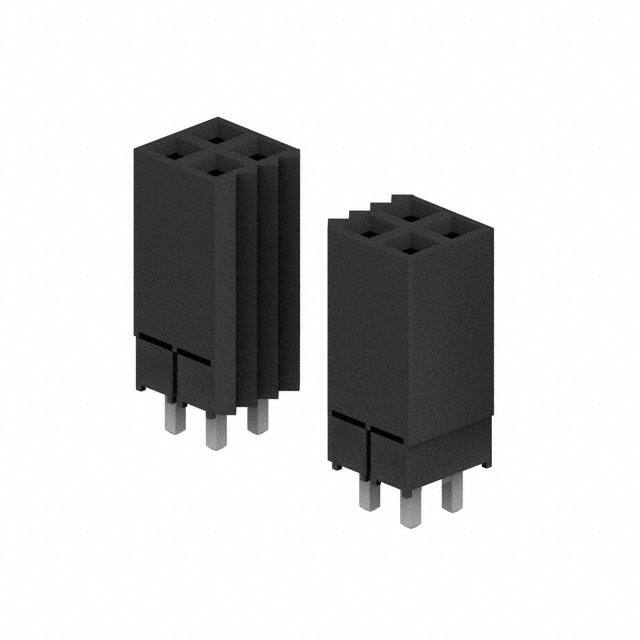

ESQ-120-12-T-D

Specifications

Çalışma Sıcaklığı

-55°C~105°C

Insertion Forcemax

1.668 N

Connector Type

Elevated Socket

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Kurşunsuz

Lead Free

Mil Conformance

NO

Insulation Height

0.435 11.05mm

Contact Finish Mating

Tin

Contact Length Post

0.090 2.29mm

Terminal

Solder

Number Of Conductors

ONE

Contact Shape

Square

Uzunluk

51.31mm

Mixed Contacts

NO

Nominal Gerilim

550VAC

Contact Type

Forked

Parça Durumu

Active

Fastening Type

Push-Pull

Contact Resistance

10mOhm

Fabrika Tedarik Süresi

3 Weeks

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Yayın Yılı

2000

Montaj

Through Hole

Kurşunsuz Kodu

yes

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Reach Svhc

No SVHC

Orientation

Straight

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT
