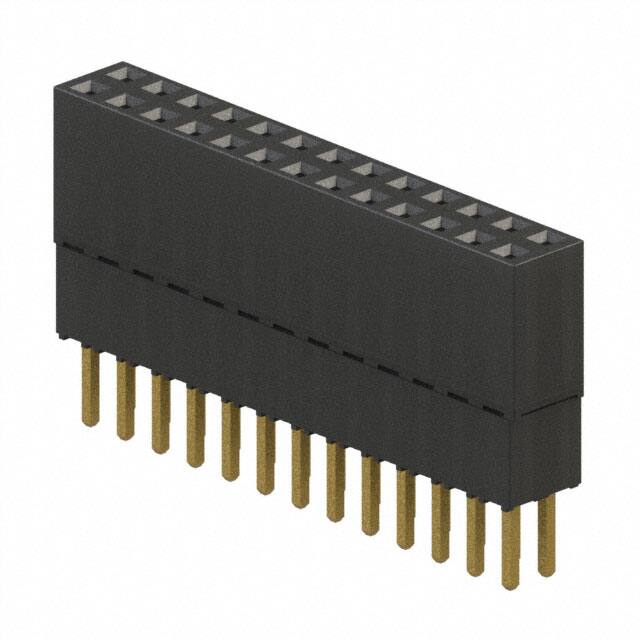

ESQ-113-23-G-D

Specifications

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

Orientation

Straight

Reach Svhc

No SVHC

HTS Kodu

8536.69.40.40

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Kurşunsuz Kodu

yes

Contact Finish Thickness Mating

20.0μin 0.51μm

Radyasyon Dayanımı

No

Max Current Rating

6.9A

Mating Contact Pitch

0.1 inch

Style

Board to Board

Contact Finish Thickness Post

3.00μin 0.076μm

Sıra Sayısı

2

Current Rating Amps

5.7A per Contact

ECCN Kodu

EAR99

Depth

4.95mm

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.195 inch

JESD-609 Kodu

e4

Montaj Tipi

Through Hole

Filter Feature

NO

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

ESQ

Pozisyon Sayısı

26

Housing Material

Polyester

Max Voltage Rating Ac

550V

Material Flammability Rating

UL94 V-0

Housing Color

Black

Insulation Height

0.535 13.60mm
