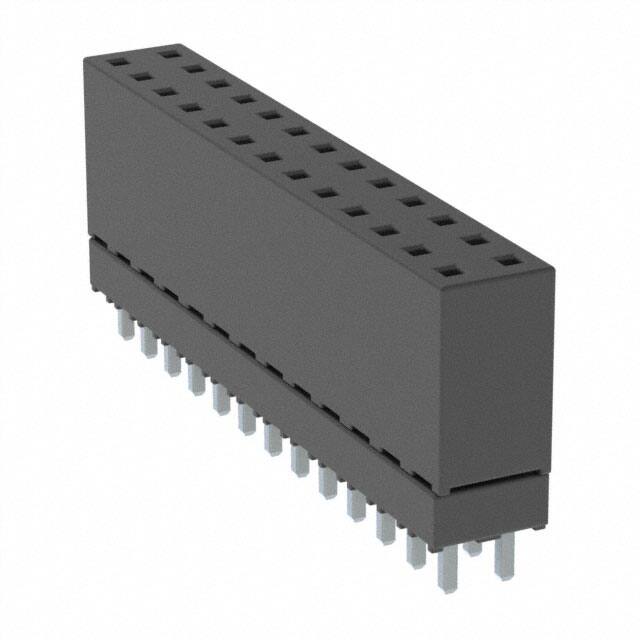

ESQ-113-12-S-D

Specifications

Orientation

Straight

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

Not Applicable

Iec Conformance

NO

Gender

Receptacle

HTS Kodu

8536.69.40.40

Insulation Color

Black

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Thickness Mating

30.0μin 0.76μm

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

JESD-609 Kodu

e3

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Through Hole

Filter Feature

NO

Seri

ESQ

Pozisyon Sayısı

26

Pitch Mating

0.100 2.54mm

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

550V

Housing Material

Polyester

Max Current Rating

6.9A

Style

Board to Board

Mating Contact Pitch

0.1 inch

Sıra Sayısı

2

Depth

4.95mm

ECCN Kodu

EAR99

Current Rating Amps

5.7A per Contact

Contact Finish Post

Tin

Connector Type

Elevated Socket

Insertion Forcemax

1.668 N

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Plating Thickness

30μin
