Volume pricing
- 1+ pcs$3.68
- 10+ pcs$3.47
- 100+ pcs$3.27
- 500+ pcs$3.09
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

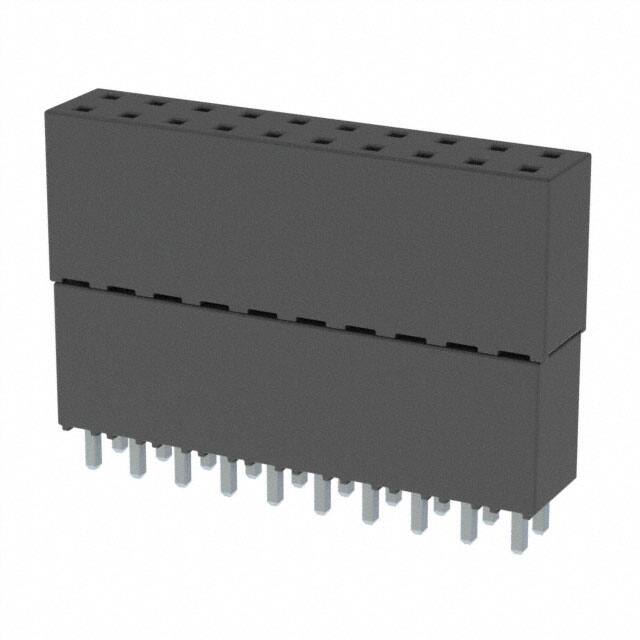

Specifications
- Max Current Rating
- 6.9A
- Style
- Board to Board
- Mating Contact Pitch
- 0.1 inch
- Sıra Sayısı
- 2
- Depth
- 4.95mm
- ECCN Kodu
- EAR99
- Current Rating Amps
- 5.7A per Contact
- Mounting Option1
- LOCKING
- JESD-609 Kodu
- e3
- Body Breadth
- 0.195 inch
- Pcb Contact Pattern
- RECTANGULAR
- Montaj Tipi
- Through Hole
- Filter Feature
- NO
- Pozisyon Sayısı
- 20
- Seri
- ESQ
- Pitch Mating
- 0.100 2.54mm
- Din Conformance
- NO
- Material Flammability Rating
- UL94 V-0
- Max Voltage Rating Ac
- 550V
- Housing Material
- Polyester
- Number Of Positions Loaded
- All
- Reference Standard
- UL, CSA
- Option
- GENERAL PURPOSE
- Reach Svhc
- No SVHC
- Contact Materials
- Phosphor Bronze
- Orientation
- Straight
- Polarization Key
- POLARIZED HOUSING
- Nem Hassasiyeti (MSL)
- Not Applicable
- Iec Conformance
- NO
- Gender
- Receptacle
- HTS Kodu
- 8536.69.40.40
- Insulation Color
- Black
- Kurşunsuz Kodu
- yes
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Number Of Pcb Rows
- 2
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Row Spacing Mating
- 0.100 (2.54mm)
- Reliability
- COMMERCIAL
- Yayın Yılı
- 2011
- Contact Resistance
- 10mOhm
