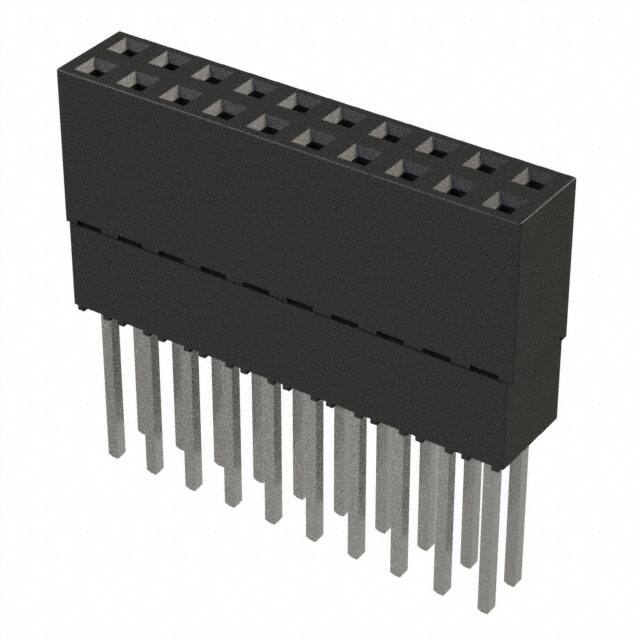

ESQ-110-24-T-D

Specifications

Mating Contact Pitch

0.1 inch

Style

Board to Board

ECCN Kodu

EAR99

Current Rating Amps

5.7A per Contact

Length Termination

0.38 inch

Sıra Sayısı

2

Montaj Tipi

Through Hole

Filter Feature

NO

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Seri

ESQ

Pozisyon Sayısı

20

Pitch Mating

0.100 2.54mm

Additional Feature

TIGER BUY CONTACT

Number Of Positions Loaded

All

Option

GENERAL PURPOSE

Akım Değeri

5.7A

Reference Standard

UL, CSA

HTS Kodu

8536.69.40.40

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Radyasyon Dayanımı

No

Insulation Color

Black

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj

Through Hole

Yayın Yılı

2011

Body Depth

0.535 inch

Reliability

COMMERCIAL

Row Spacing Mating

0.100 (2.54mm)

Fabrika Tedarik Süresi

3 Weeks

Contact Resistance

10mOhm
