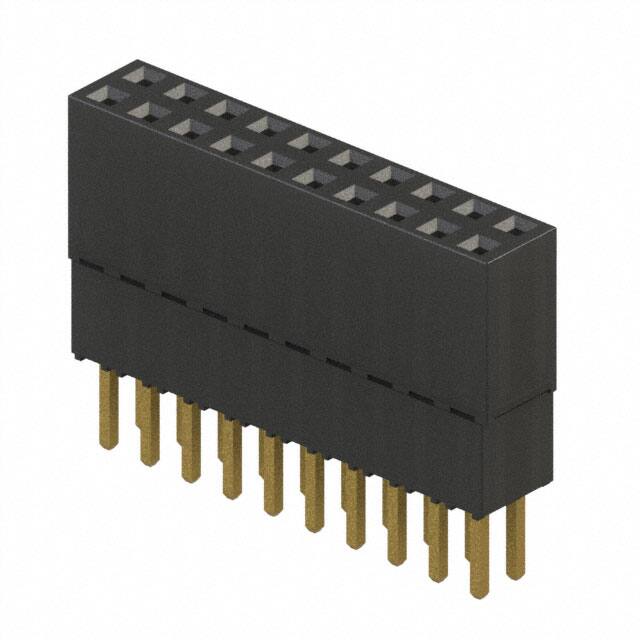

ESQ-110-23-G-D

Specifications

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.195 inch

Mounting Option1

LOCKING

JESD-609 Kodu

e4

Filter Feature

NO

Montaj Tipi

Through Hole

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

ESQ

Pozisyon Sayısı

20

Housing Material

Polyester

Max Voltage Rating Ac

550V

Material Flammability Rating

UL94 V-0

Max Current Rating

6.9A

Mating Contact Pitch

0.1 inch

Style

Board to Board

Contact Finish Thickness Post

3.00μin 0.076μm

Sıra Sayısı

2

Current Rating Amps

5.7A per Contact

Depth

4.95mm

Polarization Key

POLARIZED HOUSING

Orientation

Straight

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Color

Black

Kurşunsuz Kodu

yes

Contact Finish Thickness Mating

20.0μin 0.51μm

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Nominal Gerilim

550VAC

Parça Durumu

Active

Fastening Type

Push-Pull
