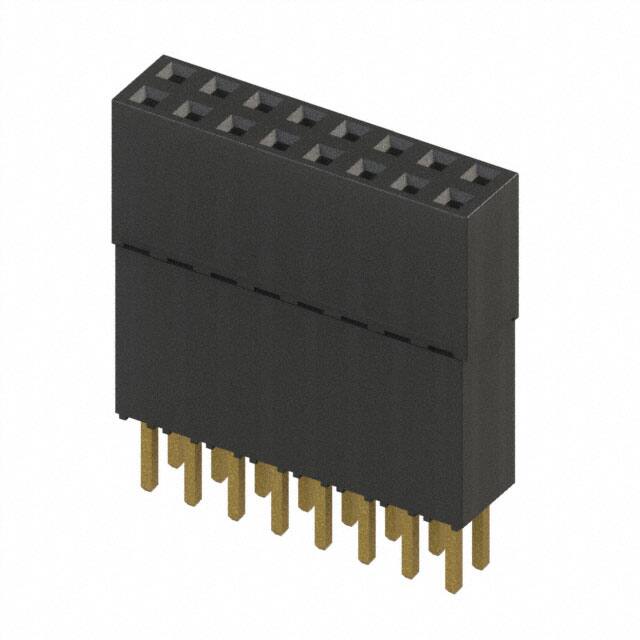

ESQ-108-44-G-D

Specifications

Yayın Yılı

2011

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Contact Resistance

10mOhm

Fabrika Tedarik Süresi

3 Weeks

Contact Type

Forked

Fastening Type

Push-Pull

Parça Durumu

Active

Nominal Gerilim

550VAC

Mixed Contacts

NO

Contact Shape

Square

Uzunluk

20.83mm

Contact Finish Mating

Gold

Contact Length Post

0.180 4.57mm

Terminal

Solder

Number Of Conductors

ONE

Insulation Height

0.735 18.67mm

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Connector Type

Elevated Socket

Çalışma Sıcaklığı

-55°C~125°C

Style

Board to Board

Mating Contact Pitch

0.1 inch

Max Current Rating

6.9A

Depth

4.95mm

Current Rating Amps

5.7A per Contact

Sıra Sayısı

2

Contact Finish Thickness Post

3.00μin 0.076μm

Montaj Tipi

Through Hole

Filter Feature

NO

Mounting Option1

LOCKING

JESD-609 Kodu

e4

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

550V

Housing Material

Polyester

Pozisyon Sayısı

16

Seri

ESQ
