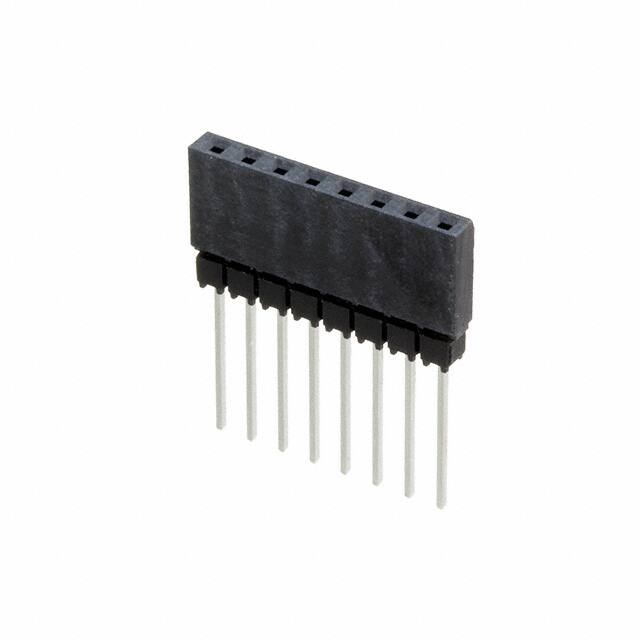

ESQ-108-14-T-S

Specifications

Çalışma Sıcaklığı

-55°C~105°C

Connector Type

Elevated Socket

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Mil Conformance

NO

Terminal Adımı

2.54mm

Insulation Height

0.435 11.05mm

Yükseklik

11.3mm

Contact Length Post

0.480 12.19mm

Contact Finish Mating

Tin

Number Of Conductors

ONE

Terminal

Solder

Contact Shape

Square

Mixed Contacts

NO

Nominal Gerilim

550VAC

Contact Type

Forked

Parça Durumu

Active

Fastening Type

Push-Pull

Fabrika Tedarik Süresi

3 Weeks

Reliability

COMMERCIAL

Body Depth

0.435 inch

Yayın Yılı

2011

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Insulation Color

Black

Radyasyon Dayanımı

No

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL, CSA

Akım Değeri

5.7A

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Pitch Mating

0.100 2.54mm
