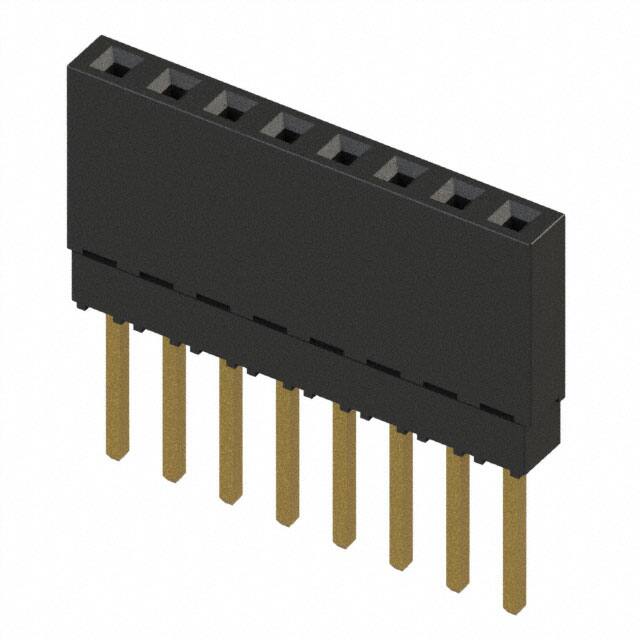

ESQ-108-13-G-S

Specifications

Reach Svhc

No SVHC

Orientation

Straight

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

Kurşunsuz Kodu

yes

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

1

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

20.0μin 0.51μm

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

JESD-609 Kodu

e4

Body Breadth

0.095 inch

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Montaj Tipi

Through Hole

Pozisyon Sayısı

8

Seri

ESQ

Pitch Mating

0.100 2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Housing Color

Black

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

550V

Housing Material

Polyester

Max Current Rating

6.9A

Style

Board to Board

Sıra Sayısı

1

Contact Finish Thickness Post

3.00μin 0.076μm

Depth

2.41mm

Current Rating Amps

5.7A per Contact

Connector Type

Elevated Socket

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Plating Thickness

20μin
