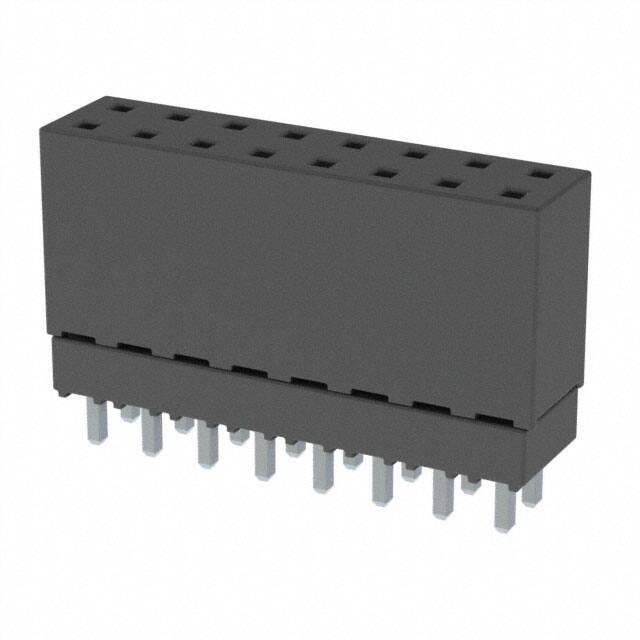

ESQ-108-12-L-D

Specifications

Yayın Yılı

2011

Montaj

Through Hole

Body Depth

0.435 inch

Reliability

COMMERCIAL

Row Spacing Mating

0.100 (2.54mm)

Fabrika Tedarik Süresi

3 Weeks

Contact Resistance

10mOhm

Parça Durumu

Active

Fastening Type

Push-Pull

Contact Type

Forked

Nominal Gerilim

550VAC

Mixed Contacts

NO

Contact Shape

Square

Terminal

Solder

Number Of Conductors

ONE

Contact Finish Mating

Gold

Contact Length Post

0.090 2.29mm

Insulation Height

0.435 11.05mm

Mil Conformance

NO

Ambalaj

Tube

Plating Thickness

10μin

RoHS Durumu

ROHS3 Compliant

Connector Type

Elevated Socket

Contact Finish Post

Tin

Çalışma Sıcaklığı

-55°C~125°C

Mating Contact Pitch

0.1 inch

Style

Board to Board

ECCN Kodu

EAR99

Current Rating Amps

5.7A per Contact

Length Termination

0.09 inch

Sıra Sayısı

2

Montaj Tipi

Through Hole

Filter Feature

NO

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Seri

ESQ

Pozisyon Sayısı

16
