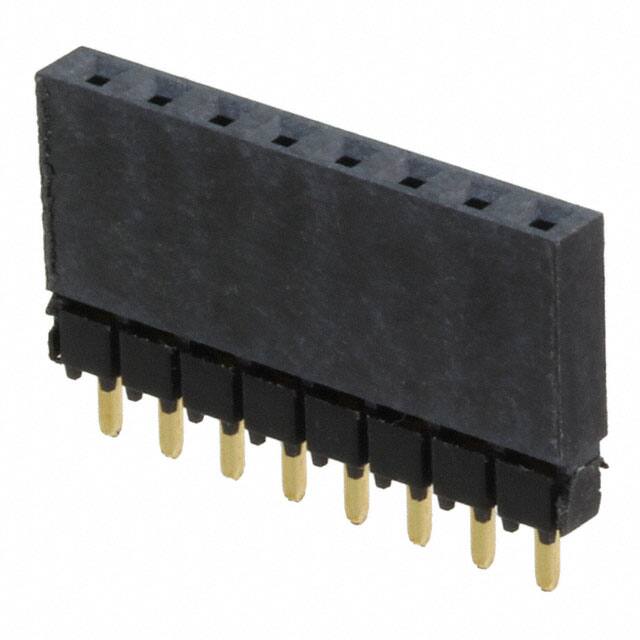

ESQ-108-12-G-S

Specifications

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Tube

Plating Thickness

20μin

RoHS Durumu

ROHS3 Compliant

Connector Type

Elevated Socket

Terminal Adımı

2.54mm

Mil Conformance

NO

Terminal

Solder

Number Of Conductors

ONE

Contact Finish Mating

Gold

Contact Length Post

0.090 2.29mm

Insulation Height

0.435 11.05mm

Mixed Contacts

NO

Uzunluk

20.83mm

Contact Shape

Square

Fastening Type

Push-Pull

Parça Durumu

Active

Contact Type

Forked

Nominal Gerilim

550VAC

Fabrika Tedarik Süresi

3 Weeks

Contact Resistance

10mOhm

Yayın Yılı

2012

Reliability

COMMERCIAL

Contact Finish Thickness Mating

20.0μin 0.51μm

Radyasyon Dayanımı

No

Insulation Color

Black

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Insulation Materials

Liquid Crystal Polymer (LCP)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

Orientation

Straight

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Additional Feature

TIGER BUY CONTACT

Number Of Positions Loaded

All
