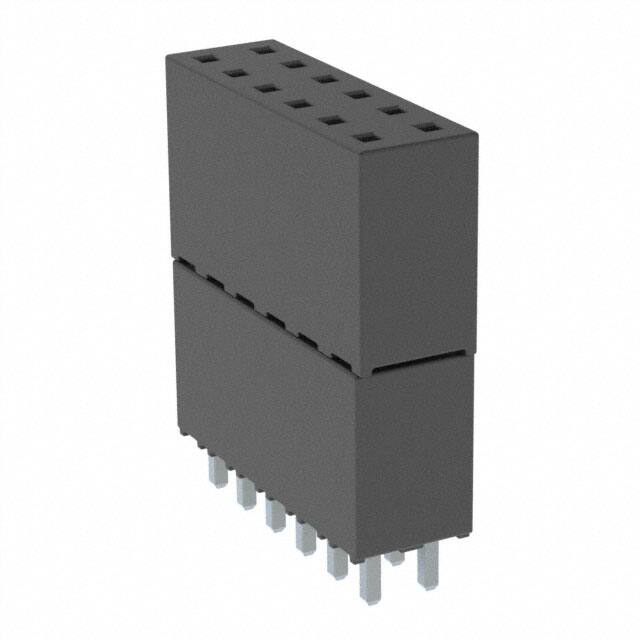

ESQ-106-33-L-D

Specifications

Kurşunsuz Kodu

yes

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

10.0μin 0.25μm

Reach Svhc

No SVHC

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

HTS Kodu

8536.69.40.40

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Pozisyon Sayısı

12

Seri

ESQ

Pitch Mating

0.100 2.54mm

Din Conformance

NO

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Montaj Tipi

Through Hole

Sıra Sayısı

2

ECCN Kodu

EAR99

Current Rating Amps

5.7A per Contact

Length Termination

0.09 inch

Style

Board to Board

Mating Contact Pitch

0.1 inch

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Post

Tin

Connector Type

Elevated Socket

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Plating Thickness

10μin

Mil Conformance

NO

Insulation Height

0.635 16.13mm
