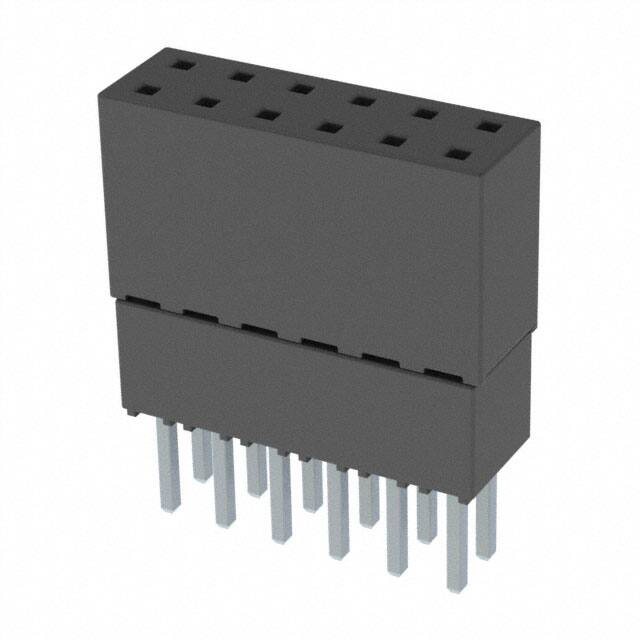

ESQ-106-23-S-D

Specifications

Contact Resistance

10mOhm

Fabrika Tedarik Süresi

3 Weeks

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Body Depth

0.535 inch

Montaj

Through Hole

Contact Shape

Square

Mixed Contacts

NO

Nominal Gerilim

550VAC

Contact Type

Forked

Fastening Type

Push-Pull

Parça Durumu

Active

Withdrawl Forcemin

1.39 N

Mil Conformance

NO

Insulation Height

0.535 13.60mm

Contact Length Post

0.190 4.83mm

Contact Finish Mating

Gold

Number Of Conductors

ONE

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Post

Tin

Insertion Forcemax

1.668 N

Connector Type

Elevated Socket

RoHS Durumu

ROHS3 Compliant

Plating Thickness

30μin

Ambalaj

Bulk

Sıra Sayısı

2

Length Termination

0.19 inch

Current Rating Amps

5.7A per Contact

ECCN Kodu

EAR99

Style

Board to Board

Mating Contact Pitch

0.1 inch

Pitch Mating

0.100 2.54mm

Seri

ESQ

Pozisyon Sayısı

12

Din Conformance

NO

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.195 inch
