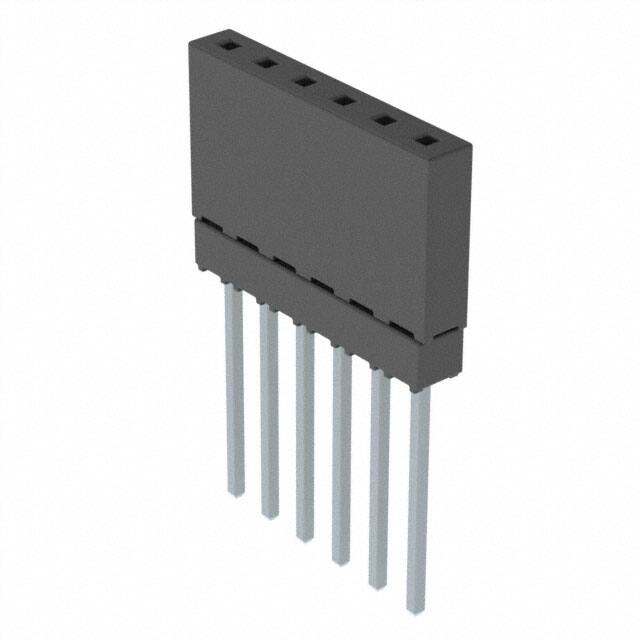

ESQ-106-14-L-S

Specifications

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Insulation Materials

Liquid Crystal Polymer (LCP)

Insulation Color

Black

Kurşunsuz Kodu

yes

Contact Finish Thickness Mating

10.0μin 0.25μm

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Sıra Sayısı

1

Length Termination

0.48 inch

Current Rating Amps

5.7A per Contact

ECCN Kodu

EAR99

Style

Board to Board

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Seri

ESQ

Pozisyon Sayısı

6

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.095 inch

JESD-609 Kodu

e3

Filter Feature

NO

Montaj Tipi

Through Hole

Mil Conformance

NO

Terminal Adımı

2.54mm

Insulation Height

0.435 11.05mm

Number Of Conductors

ONE

Terminal

Solder

Contact Length Post

0.480 12.19mm

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Connector Type

Elevated Socket

Contact Finish Post

Tin
