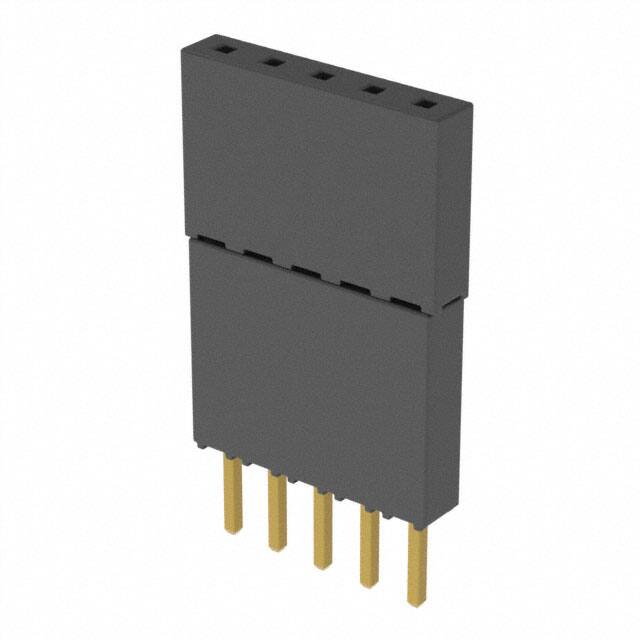

ESQ-105-44-G-S

Specifications

Çalışma Sıcaklığı

-55°C~125°C

Connector Type

Elevated Socket

RoHS Durumu

ROHS3 Compliant

Plating Thickness

20μin

Ambalaj

Tube

Mil Conformance

NO

Insulation Height

0.735 18.67mm

Contact Length Post

0.180 4.57mm

Contact Finish Mating

Gold

Number Of Conductors

ONE

Terminal

Solder

Contact Shape

Square

Uzunluk

13.21mm

Mixed Contacts

NO

Nominal Gerilim

550VAC

Contact Type

Forked

Parça Durumu

Active

Fastening Type

Push-Pull

Contact Resistance

10mOhm

Fabrika Tedarik Süresi

3 Weeks

Reliability

COMMERCIAL

Yayın Yılı

2011

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Insulation Color

Black

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

20.0μin 0.51μm

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

Orientation

Straight

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Pitch Mating

0.100 2.54mm
