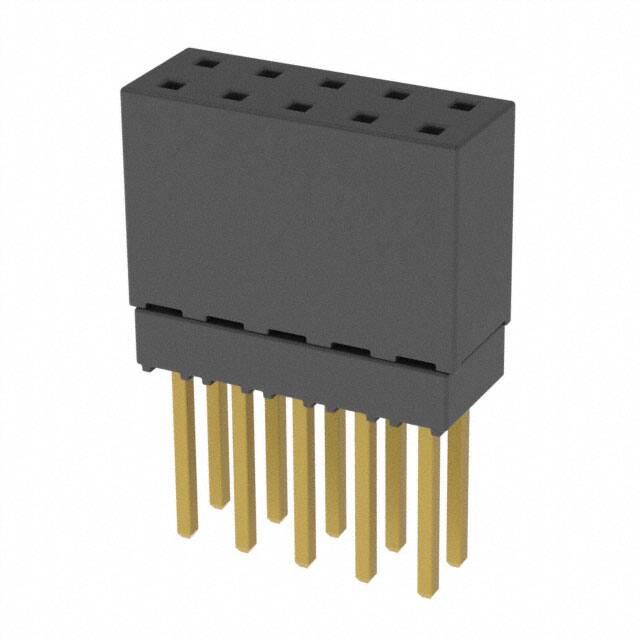

ESQ-105-13-G-D

Specifications

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.195 inch

Montaj Tipi

Through Hole

Filter Feature

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch Mating

0.100 2.54mm

Pozisyon Sayısı

10

Seri

ESQ

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Style

Board to Board

Mating Contact Pitch

0.1 inch

Contact Finish Thickness Post

3.00μin 0.076μm

Sıra Sayısı

2

Current Rating Amps

5.7A per Contact

Lead Pitch

2.54mm

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

HTS Kodu

8536.69.40.40

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Insulation Color

Black

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

20.0μin 0.51μm

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Nominal Gerilim

550VAC

Contact Type

Forked

Parça Durumu

Active

Fastening Type

Push-Pull

Contact Shape

Square
