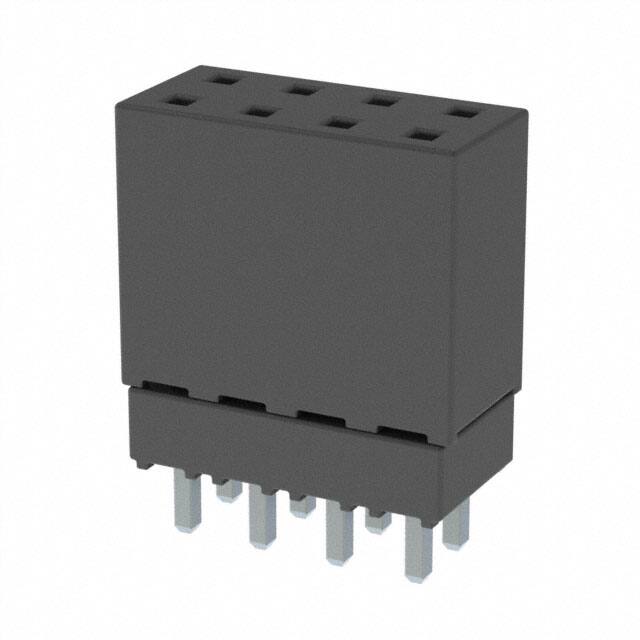

ESQ-104-12-L-D

Specifications

Montaj Tipi

Through Hole

Filter Feature

NO

JESD-609 Kodu

e3

Body Breadth

0.195 inch

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

8

Seri

ESQ

Pitch Mating

0.100 2.54mm

Din Conformance

NO

Style

Board to Board

Mating Contact Pitch

0.1 inch

ECCN Kodu

EAR99

Current Rating Amps

5.7A per Contact

Length Termination

0.09 inch

Sıra Sayısı

2

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Reach Svhc

No SVHC

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Color

Black

Kurşunsuz Kodu

yes

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Number Of Positions Loaded

All

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Contact Type

Forked

Parça Durumu

Active

Fastening Type

Push-Pull

Nominal Gerilim

550VAC

Mixed Contacts

NO

Contact Shape

Square

Body Depth

0.435 inch

Montaj

Through Hole

Yayın Yılı

2011
