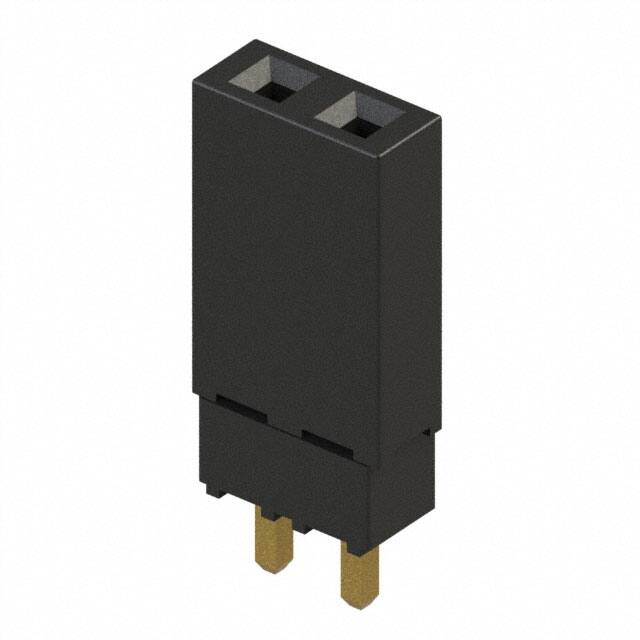

ESQ-102-12-G-S

Specifications

Mounting Option1

LOCKING

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.095 inch

Montaj Tipi

Through Hole

Filter Feature

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch Mating

0.100 2.54mm

Seri

ESQ

Pozisyon Sayısı

2

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Max Voltage Rating Ac

550V

Max Current Rating

6.9A

Style

Board to Board

Contact Finish Thickness Post

3.00μin 0.076μm

Sıra Sayısı

1

Depth

2.41mm

Current Rating Amps

5.7A per Contact

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

Orientation

Straight

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Insulation Color

Black

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

20.0μin 0.51μm

Number Of Positions Loaded

All

Additional Feature

TIGER BUY CONTACT

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Nominal Gerilim

550VAC

Contact Type

Forked

Parça Durumu

Active
