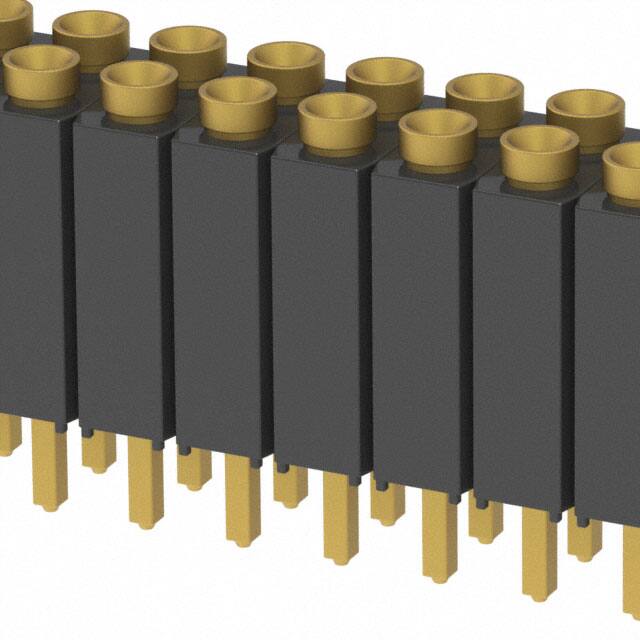

ESD-116-G-23

Specifications

JESD-609 Kodu

e4

Additional Feature

LOW INSERTION FORCE

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

Din Conformance

NO

Pozisyon Sayısı

32

Contact Type

Female Socket

Filter Feature

NO

Terminal

Solder

Fastening Type

Push-Pull

Mixed Contacts

NO

Seri

ESD

Contact Materials

Beryllium Copper

Insulation Height

0.300 7.62mm

Kurşunsuz Kodu

yes

Contact Finish Thickness Post

10.0μin 0.25μm

Style

Board to Board

Insulation Color

Black

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Mil Conformance

NO

Number Of Positions Loaded

All

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

RoHS Durumu

ROHS3 Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Iec Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

Option

GENERAL PURPOSE

Gender

Female

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Gold

Contact Shape

Circular

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

3 Weeks

Ambalaj

Bulk

Connector Type

Elevated Socket

Contact Length Post

0.115 2.92mm

Montaj Tipi

Through Hole
